Graco Accessories Combo Deal - Special

GRACO
Save 14%
$177.00
SKU: 240793-D2

Quantity

Out of stock
Add to Cart
Out of stock
Add to cart

Payment & Security | Refund Policy

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Graco Accessories Combo Deal - Special
$177.00

Description

Graco Accessories Combo Deal - PaintAccess

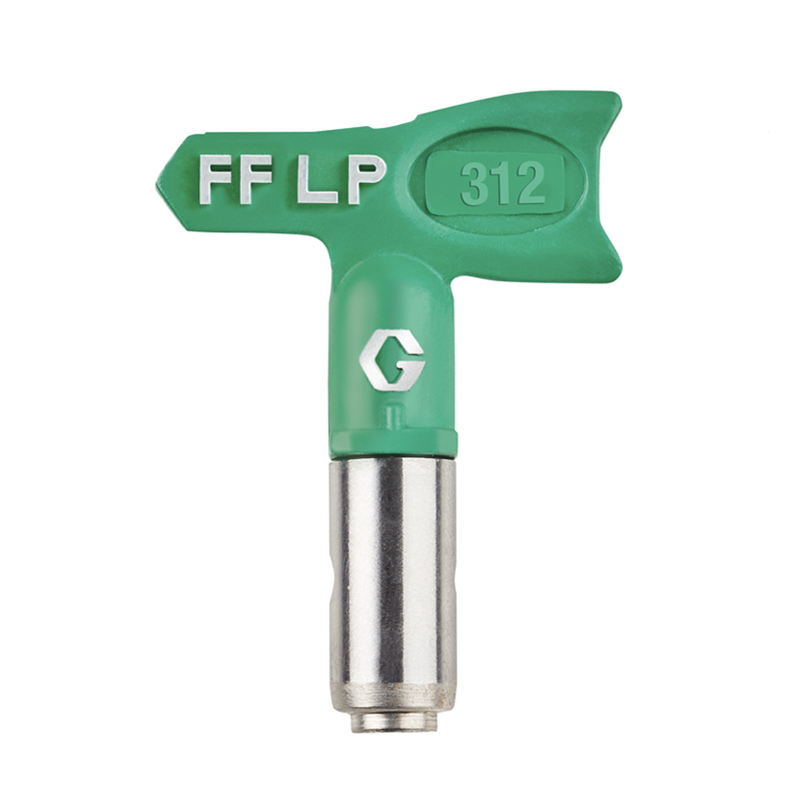

Graco Airless Fine Finish Low Pressure 312  RAC X FFLP SwitchTips Green


Graco Fine Finish RAC X Switch Tips

Superior Tip Design
'
RAC X Fine Finish SwitchTips spray at lower pressures than standard tips and Fine Finish RAC 5 tips
' There is a tighter, more consistent fan pattern and less overspray
' Pre-Orifice design makes it less likely to plug and easier to clean due to diffuser design
' RAC X Fine Finish SwitchTips offer finer atomisation and soft edges easier for overlapping
' Turns your Graco airless sprayer into a high production fine finish sprayer
' Also includes solvent seal for extremely hot solvents


Quick Guide to Understanding Airless Spray Tips: E.g. 517. 5 is the fan size in inches and is doubled (ie. 10 inches). 17 is the orifice size in thousandths of an inch. So a 517 will spray 10 inches wide through an orifice the size of 17 thousandths of an inch. Using that formula, a 413 tip would spray 8 inches wide through an orifice of 13 thousandths of an inch. Choosing the right tip for the right job is crucial!


Typical Applications: Cabinetry, wood working, metal and fine finish surfaces

Materials: Dyes, Ink, Stains, Lacquers, Oils, Enamels, Urethanes, Auto finishes

Corresponding Guards: RAC X 246125, Flat Tip 220251, Flat Tip 220247


***DUE TO THE VAST AMOUNT OF DIFFERENT TIP OPTIONS, WE DO NOT CARRY ALL IN STOCK SO PLEASE ALLOW AT LEAST 7 DAYS FOR SHIPPING. PLEASE INQUIRE BEFORE ORDERING IF NEEDED URGENTLY.***



For resources, guides, instruction manuals, and more, click below:

SPRAY TIP APPLICATION GUIDE: WHICH TIP TO USE FOR WHAT PAINT/SURFACE

MAGNUM SPRAYER TIP SELECTOR GUIDE

EVERYTHING YOU NEED TO KNOW ABOUT TIPS BY GRACO - FROM GRACO

MORE GRACO LITERATURE ABOUT SPRAYERS


2 - Graco Whip Hose provides more flexibility for airless gun operation

At PaintAccess.com.au we have largest selection of Graco Whip Hoses -  professional approach gives you more flexibility for spraying and release pressure from your arm.

The BlueMax II Whip Hose provides more flexibility and increased operator control at the gun.

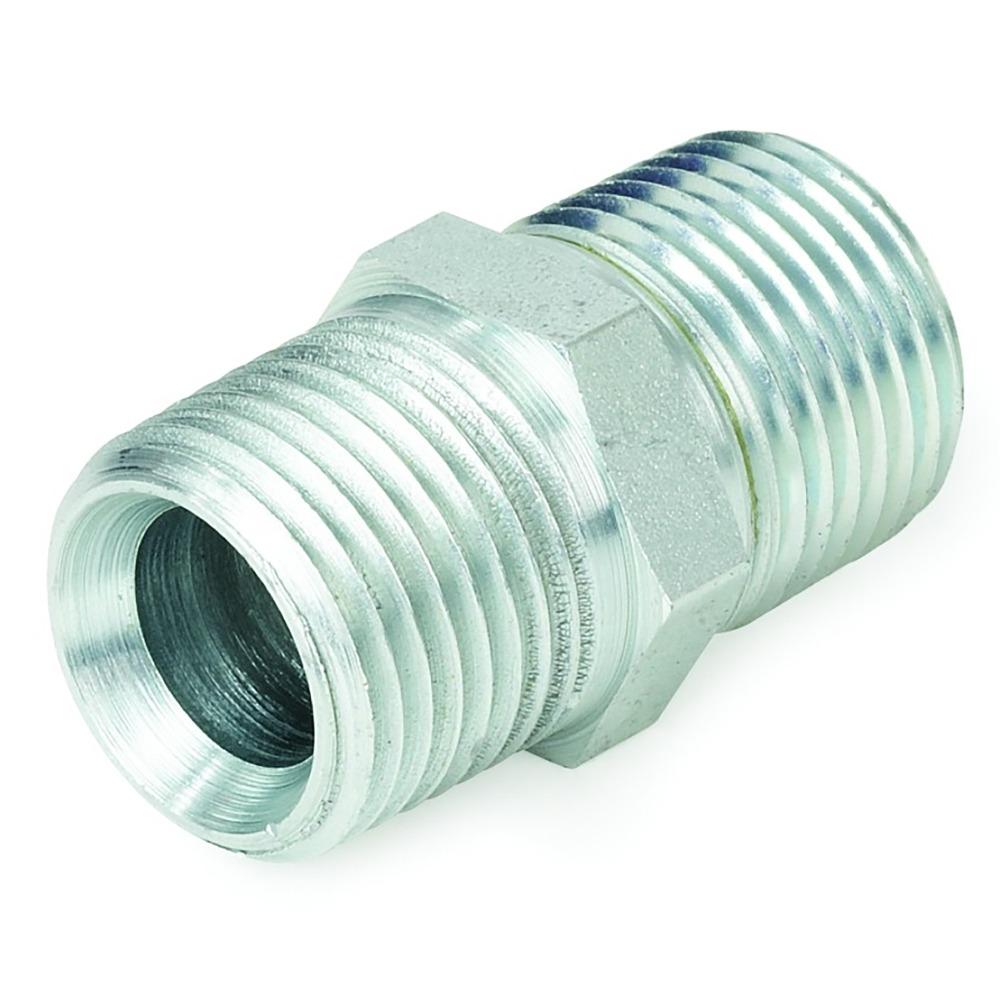

3 - Graco 1/4″ to 1/4″ Hose Joiner

Quality hose connector from Graco high pressure spraying hose

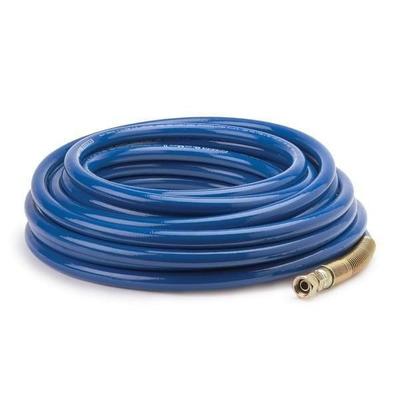

Graco Blue Max II Airless Paint Hoses 1/4" (6.4mm)




4 - Graco fluids and protectants keep your equipment in top-performing condition and are approved for use in all airless pumps

Prevents paint and coatings from drying onto the displacement rod and packings
Extends pump life

  • Specially formulated to dissolve material on displacement rods
  • For use with Graco pumps

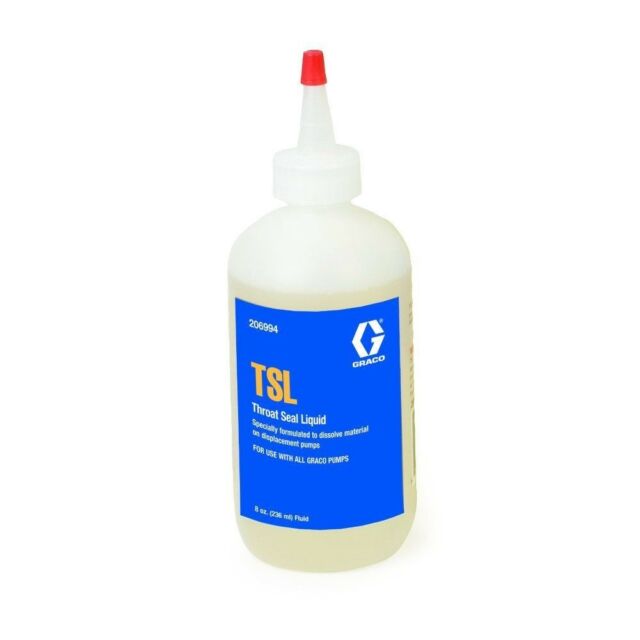

Throat seal liquid:

Graco TSL is specially formulated to dissolve material on displacement rods and prevent friction, wear or an abrasion from dried pigment particles. Motor oil not a substitute for TSL.

Directions:

Portable pimps: Fill wet cup 1/2in. (13mm) fixed pumps: Fill wet cup 2/3 full

  • 24 Liter (8 ounces)

Proven Quality. Leading Technology

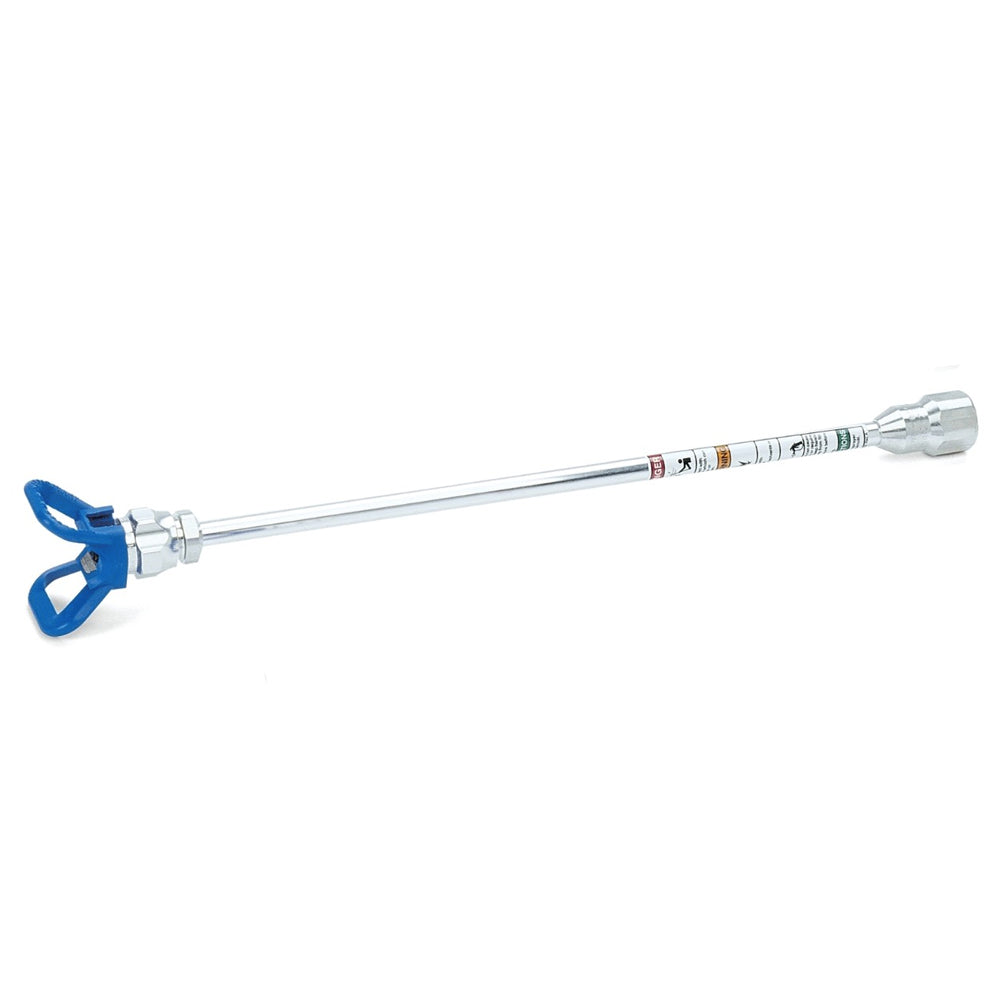

5 - RAC X Tip Extensions

Maximum WPR: 4050 psi, (280 bar, 28.0 MPa)

  • Includes: RAC X HandTite Guard standard with 7/8 in (22 mm) gun nut and OneSeal
  • Can be combined for extended reach up to 6 ft (1.8 m):
    • 287019 Extension Pole 10 in (25 cm)
    • 287021 Extension Pole 20 in (50 cm)
    • 287020 Extension Pole 15 in (38 cm)
    • 287022 Extension Pole 30 in (75 cm)

Extend your reach. A full range of accessories has been developed to highly increase the comfort, the speed and the productivity that you need to paint hard-to-reach areas.

Airless Tip Extensions can be attached directly to an airless gun making them ideal for spraying ceilings, overhangs and decks. A CleanShot Valve can be attached directly to any extension and provides a clean fluid shutoff at the tip eliminating spitting.

These extension tips will fit most airless sprayer guns with 7/8" thread

For resources on replacement kits and other instruction manuals, click below:

More technical specs


6 - Graco 243103 Pump Armor Storage Fluid for airless paint spray guns

  • Wide-mouth bottle conveniently fits most pump intake tubes: no waste
  • Non-flammable
  • Easy to use



Helps to eliminate damage due to corrosion during long-term storage. Fill your pump and leave until you use your sprayer again. Freeze-proof to -30-Degree F.

Graco 243103 Pump Armor Storage Fluid for Airless Paint Spray Gun




Videos

Features

Graco Whip Hose provides more flexibility for Airless Gun Operation

Graco fluids and protectants keep your equipment in top-performing condition and are approved for use in all airless pumps

Extensions have been developed to highly increase the comfort, the speed and the productivity that you need to paint hard-to-reach areas

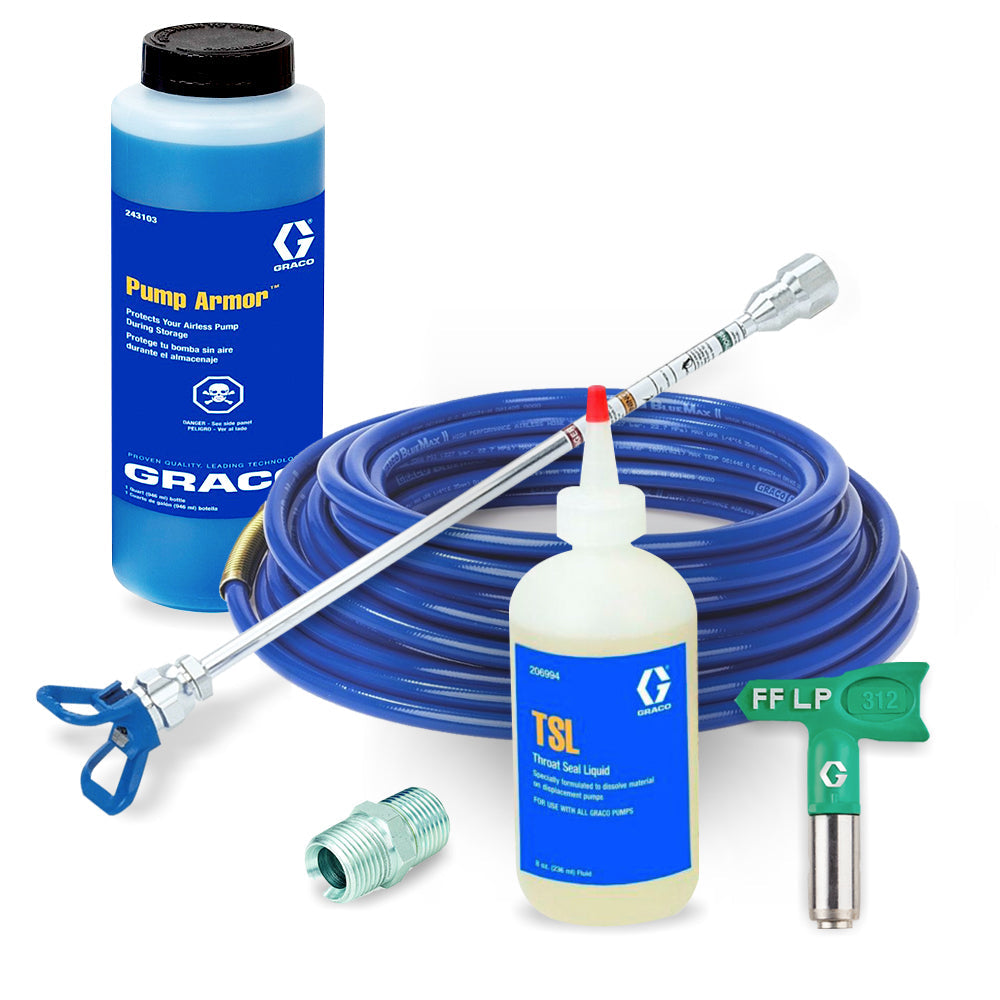

What's Included

1 -  Pump Armor 1L (Single) - 243103

1 - 25cm Tip Extension w/ RAC X Guard (10") - 287019

1 - 7.5m Airless Hose (1/4") 6.4mm 3300 PSI - 240793

1 - Hose Fitting, 1/4 in x 1/4 in -  156971

1 - Graco Airless Fine Finish RACX FFLP SwitchTip Green 312  - FFLP312

1 - TSL Throat seal liquid - 206994

Reviews

Dimensions

Width
Width
Height
Height
Length
Length
product
34 cm
7 cm
46 cm

Weight

Courier

Easy To Carry

Total Weight: 2.5786 kg
