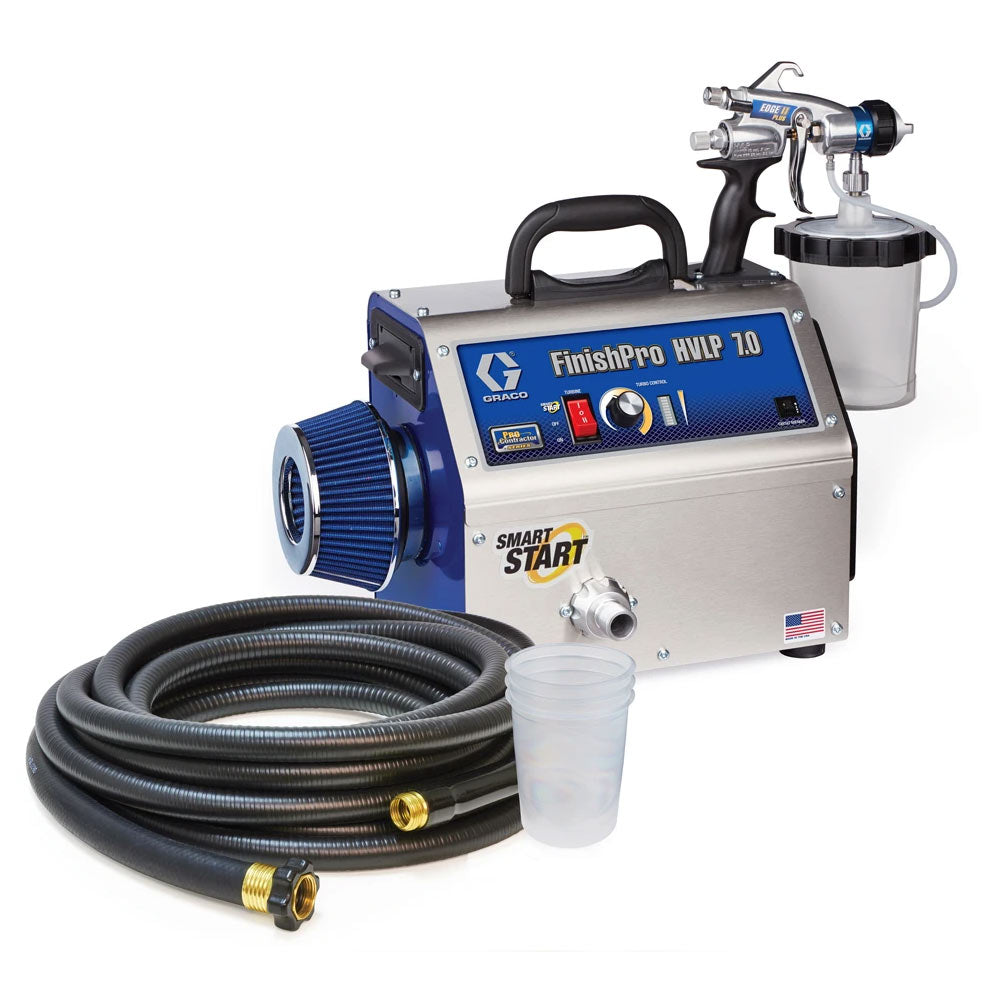

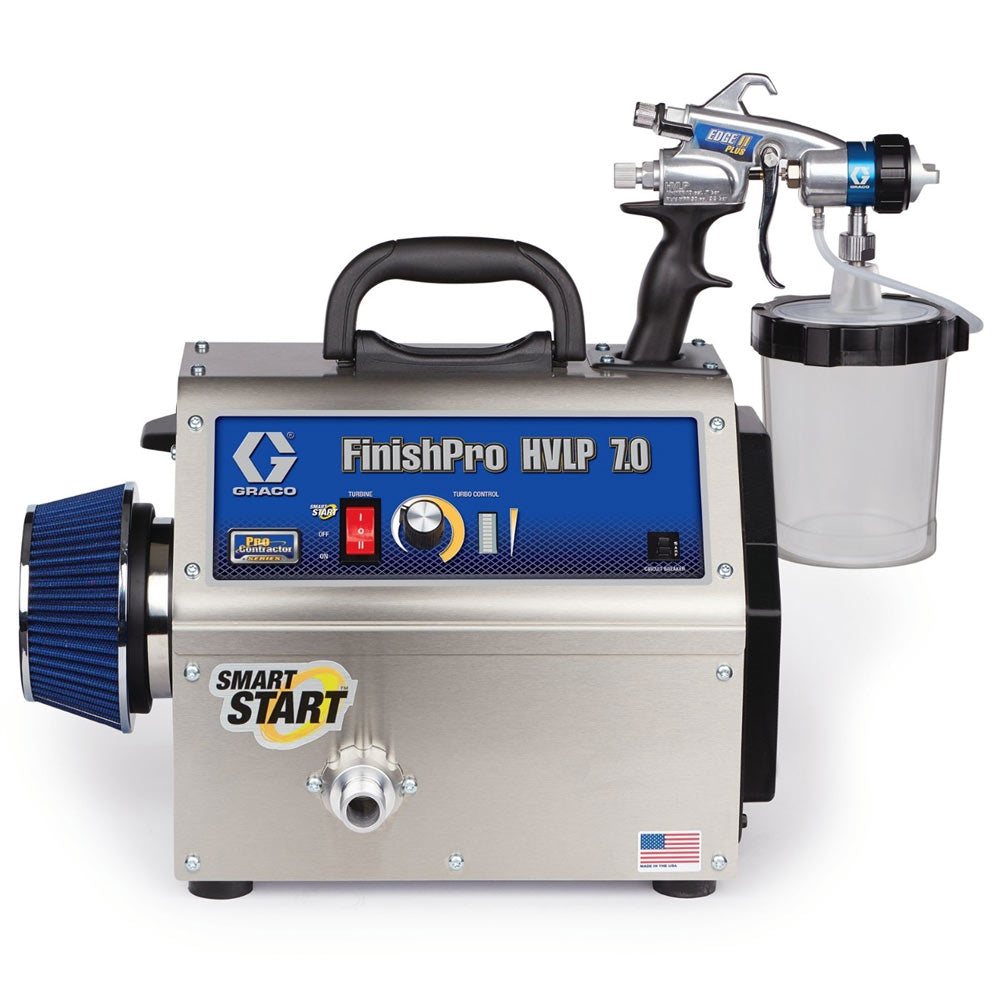

Graco FinishPro™ HVLP 7.0 ProContractor Series (17R078)

$3,696.00

Description

Graco FinishPro™ HVLP 7.0 ProContractor Series – 3-Stage Turbine Sprayer

The Graco FinishPro™ HVLP 7.0 ProContractor Series is designed for professionals who want to work smarter and finish more jobs with a superior spray finish. This 3-stage turbine system is ideal for small-to-medium fine finish projects, offering unmatched motor life and jobsite convenience.

As part of the ProContractor Series, this unit is upgraded with SmartStart™ technology, which automatically shuts off the turbine when not in use to reduce noise, heat, and fatigue. With the advanced EDGE II Plus Gun, operators gain ultimate control via independent adjustments for material volume, airflow, and spray fan size. The rugged "Tough Box" design and dual automotive-grade filtration ensure that this sprayer stands up to the most demanding professional environments.

Compare Table

Click here to open table


	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5
SPECIFICATIONS
Part numbers	17R074	17R075	17R078	17R079	17R080	17R081
Warranty	3 years	3 years	3 years	3 years	3 years	3 years
Turbine stages	3	5	3	5	5	5
Motor Watts/HP	1200/1.63	1300/1.77	1200/1.63	1300/1.77	1600/2.18	1800/2.45
Max. air working pressure - bar (PSI)	0.48 (7)	0.6 (9)	0.5 (7)	0.62 (9)	0.7 (9.5)	0.7 (9.5)
Weight - kg (lbs)	8.1 (18)	8.6 (19)	10.4 (23)	10.8(24)	11.7 (26)	13.6 (30)
FEATURES
TurboForceTM II technology	■	■	■	■	■	■
SmartStart			■	■	■	■
TCS System	■	■	■	■	■	■
Quick release needle	■	■	■	■	■	■
Flex LinerTM System	■	■	■	■	■	Remote Cup
Air flow control at the gun	Preset Ratio	Preset Ratio	■	■	■	■
Material volume control at the gun	■	■	■	■	■	■
Spray fan size control at the gun	■	■	■	■	■	■
Needle nozzle storage			■	■	■	■
Air filtration	Foam	Foam	Automotive	Automotive	Automotive	Automotive
COMPOSITION
Needle nozzle-kit	#3	#3	#3	#3, #4	#3, #4, #5	#3, #4, #5
Gun	EDGE® II	EDGE® II	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus
Hose	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159
Whip hose					Super-FlexTM Air 1.2M - 17R299	Super-FlexTM Air 1.2M - 17R299
Whip hose					■	■
	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5


	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5
SPECIFICATIONS
Part numbers	17R074	17R075	17R078	17R079	17R080	17R081
Warranty	3 years	3 years	3 years	3 years	3 years	3 years
Turbine stages	3	5	3	5	5	5
Motor Watts/HP	1200/1.63	1300/1.77	1200/1.63	1300/1.77	1600/2.18	1800/2.45
Max. air working pressure - bar (PSI)	0.48 (7)	0.6 (9)	0.5 (7)	0.62 (9)	0.7 (9.5)	0.7 (9.5)
Weight - kg (lbs)	8.1 (18)	8.6 (19)	10.4 (23)	10.8(24)	11.7 (26)	13.6 (30)
FEATURES
TurboForceTM II technology	■	■	■	■	■	■
SmartStart			■	■	■	■
TCS System	■	■	■	■	■	■
Quick release needle	■	■	■	■	■	■
Flex LinerTM System	■	■	■	■	■	Remote Cup
Air flow control at the gun	Preset Ratio	Preset Ratio	■	■	■	■
Material volume control at the gun	■	■	■	■	■	■
Spray fan size control at the gun	■	■	■	■	■	■
Needle nozzle storage			■	■	■	■
Air filtration	Foam	Foam	Automotive	Automotive	Automotive	Automotive
COMPOSITION
Needle nozzle-kit	#3	#3	#3	#3, #4	#3, #4, #5	#3, #4, #5
Gun	EDGE® II	EDGE® II	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus	EDGE® II Plus
Hose	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 6M - 17R300	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159	Super-FlexTM Air 9M - 257159
Whip hose					Super-FlexTM Air 1.2M - 17R299	Super-FlexTM Air 1.2M - 17R299
Whip hose					■	■
	HVLPTM STANDARD 7.0	HVLPTM STANDARD 9.0	HVLPTM PROCONTRACTOR 7.0	HVLPTM PROCONTRACTOR 9.0	HVLPTM PROCONTRACTOR 9.5	HVLPTM PROCOMP 9.5

Specifications

Turbine Stages: 3-Stage
Max Pressure: 7 PSI (0.5 bar)
Motor: 1200 Watts / 1.63 HP
Series Type: Air-Powered ProContractor Series
Warranty: 3-Year Limited Warranty

Features

SmartStart™ Turbine: Shuts off automatically when not spraying, extending turbine life and creating a quieter workspace.
TurboControl System: Features an LED display to adjust turbine speed, matching performance to the coating while reducing heat buildup.
EDGE II Plus Gun: Provides 4X more fluid flow and 75% lighter trigger pull. Features a front-loading needle system for 1-click changes.
Dual Filtration System: Premium automotive-grade filters outperform standard foam filters to protect the motor and ensure finish quality.
FlexLiner™ Bag System: Allows for spraying at any angle—even upside down—with easy cleanup and no suction tube to maintain.
30 ft Super-Flex™ Air Hose: Includes a 50% longer hose than standard models for superior reach and jobsite mobility.
Integrated Utility Toolbox: Rugged steel enclosure includes a built-in toolbox for needle and nozzle storage, plus an on-board gun/cup holder.
