Graco GX 21 Airless Paint Sprayer (17H219) with Value Pack

GRACO
Save 3%
$2,250.00
SKU: 17H219-B6

Quantity

Out of stock
Add to Cart
Out of stock
Add to cart
seen it cheaper

Pay in 4 interest-free payments with

Payment & Security | Refund Policy

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Graco GX 21 Airless Paint Sprayer (17H219) with Value Pack
$2,250.00

Description

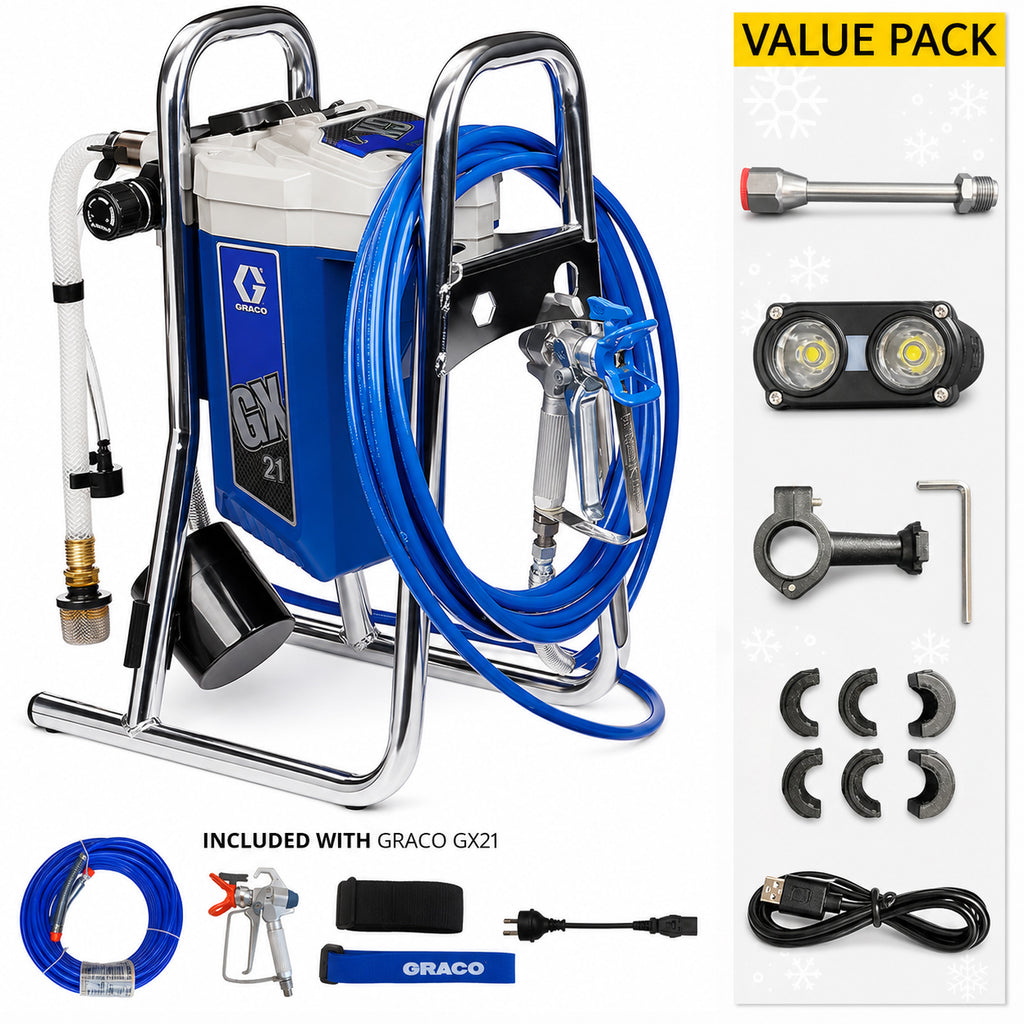

Special Value Pack - PaintAccess:

The Graco GX 21 is a fast, portable, and highly affordable solution designed specifically for the small finishing jobs every professional contractor faces. Optimized for the application of architectural paints and coatings, it combines Graco’s legendary piston pump performance with an extremely lightweight design. This sprayer is ideal for renovation, residential maintenance, and small commercial projects where speed and a smooth finish are essential.

Compare Table

Click here to open table
  GX19 FF GX19 GX 21 190 PC Express Ultra 390 PC 390 PC Cordless
Warranty 1 year 1 year 1 year 1 year 3 years 3 years
Part Numbers: 25U855 17H223 17H219 Stand 17C384 Stand 25F517
Hi-Cart 25F518 		Stand 25T882
Max. Tip Size 0.019" 0.019" 0.021" 0.021" 0.021" 0.021"
Max. flow - I/min (gpm) 1.4 (0.38) 1.4 (0.38) 1.8(0.47) 1.8(0.47) 1.8(0.47) 1.8(0.47)
Max. pressure - bar (PSI) 207 (3000) 207 (3000) 207 (3000) 207 (3000) 228 (3300) 227 (3300)
Weight - Kg(Ibs) 16Kg 12.3Kg 13.2Kg 14Kg 12.25Kg 14Kg
Motor Power (hp) 0.5 DC  0.5 DC 0.87 DC 0.62 DC Brushless DC 0.62 DC
Frame     Direct Immersion   Stand
Hopper  ■  ■ Suction Tube
Ball Knocker - PushPrime Button  ■  ■ ■
Hydraulic Pressure Gauge  ■  ■ ■    ■  ■
ProXChange Pump System  ■  ■ ■
Pump Endurance Piston Endurance Piston Endurance Piston Endurance Piston Endurance Vortex Endurance Piston
ProConnect       ■ ■ ■
Control       Electronic Electronic Electronic
Tips   FFLP210 517 RAC X LTX 515 RAC X LTX 517 RAC X LTX 517
Guard RAC X - 246215 RAC X - 246215 RAC X - 246215 RAC X - 246215
Gun filter (mesh)   Easy OutTM 100 - 287033 Easy Out 60 - 288749
Gun Contractor PC FTx - 288430 FTx - 288430 FTx - 288430 FTx - 288430 Contractor PC
Pump filter (mesh)     40 - 288747
Hose 6.4mm x 15m BlueMax II airless hose 6.4mm x 15m BlueMax II airless hose 6.4mm x 15m BlueMax II airless hose 6.4mm x 15m BlueMax II airless hose 6.4mm x 15m BlueMax II airless hose 6.4mm x 15m BlueMax II airless hose
Links  GX19 FF GX19 390PC Cordless

Videos

Specifications

  • Fluid Outlet Size (in): 1/4
  • Fluid Outlet Size (mm): 6.35
  • Fluid Outlet Thread Type: NPSM
  • Frame Configuration: DI Stand
  • Maximum Flow Rate (l/min): 1.8
  • Maximum Operating Temperature (°C): 46
  • Maximum Storage Temperature (°C):71
  • Maximum Tip Size (in): 0.021
  • Maximum Working Pressure (MPa): 20.7
  • Maximum Working Pressure (bar): #207
  • Maximum Working Pressure (kPa): 20700
  • Minimum Operating Temperature (°C): 4
  • Minimum Storage Temperature (°C): -35
  • Model: GX
  • Overall Height (cm): 46.7
  • Overall Height (mm): 467
  • Overall Length (cm): 47.5
  • Overall Length (mm): 475
  • Overall Width (cm): 34.3
  • Overall Width (mm): 343
  • Series: 21
  • Sound Power Level (dB(A)): 93
  • Type: Airless Sprayer
  • Voltage (V): 230
  • Weight (kg): 11.3
  • Wetted Material: Stainless Steel, Brass, Leather, Carbide, Nylon, Aluminium, PVC, Polypropylene, Fluoroelastomer, UHMWPE

Features

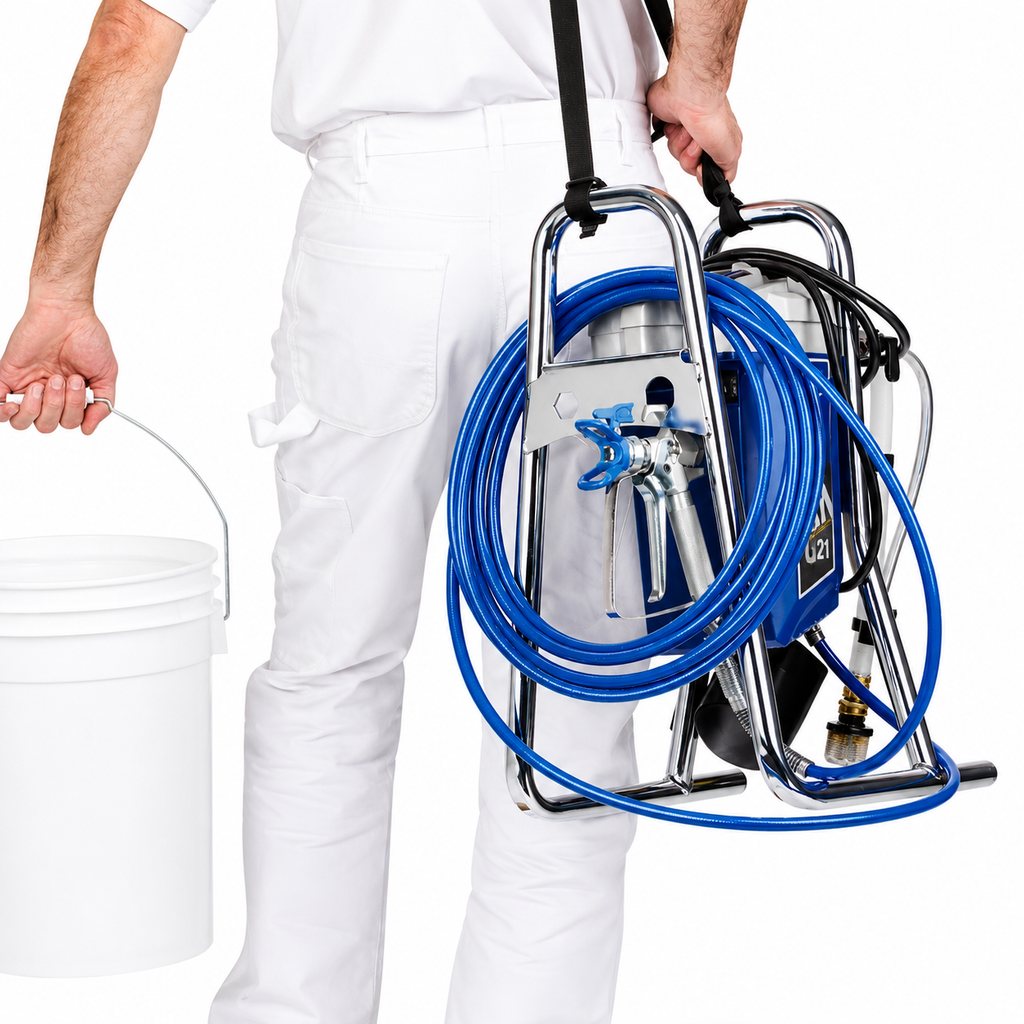

  • Extreme Portability: Lighter than any competitive system in its class, featuring an Easy Carry Handle and a lid design that prevents splashes and spills during transport.

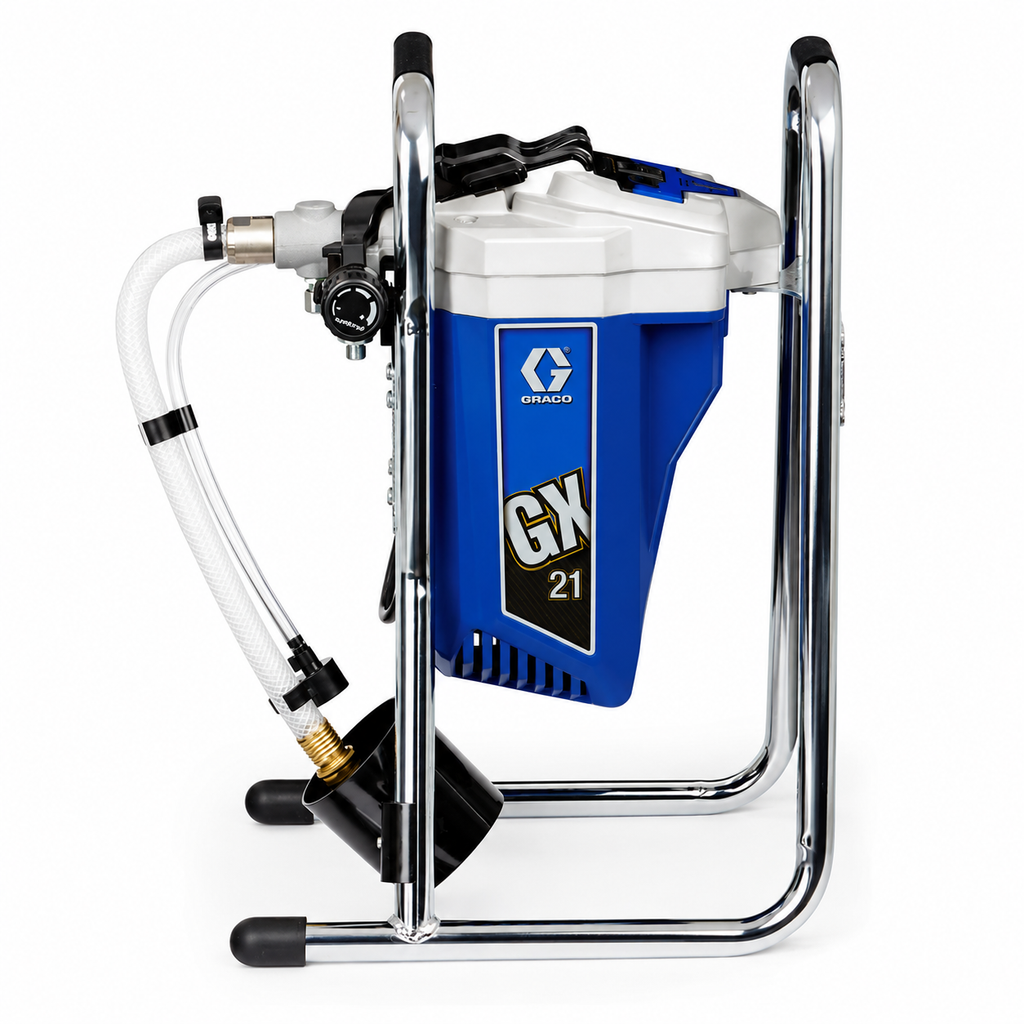

  • Direct Immersion Design: Draws paint directly from containers ranging from 1 to 30 litres. The flexible, clear suction set is compatible with both water and solvent-based paints and is easy to clean.
  • ProX Power-Piston Pump: Features a small pressure dead-band to ensure the finest finish possible. The pump includes a lifetime lubricated wiper pad for maintenance-free operation.

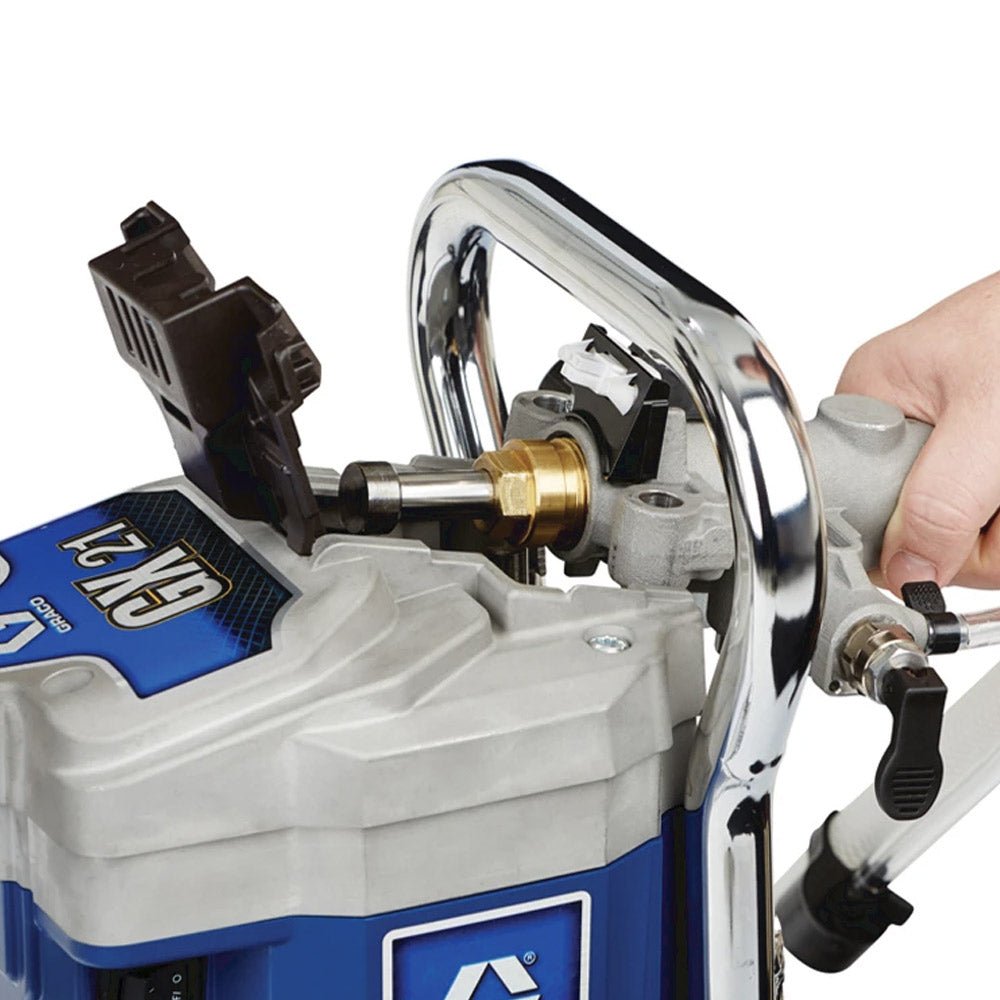

  • ProXChange™ Pump Replacement: Exclusive modular design allows for fast, on-the-job pump replacement without tools. This eliminates labor costs and expensive downtime if a pump requires service mid-project.
  • Professional SG3™ Gun: Comes equipped with a RAC X™ SwitchTip™ and a 15m hose, providing a professional-grade spraying experience right out of the box.

Reviews

Dimensions

Width
Width
Height
Height
Length
Length
product
31.75 cm
60.96 cm
49.53 cm

Weight

Courier

May require help to carry

Total Weight: 21.14 kg
