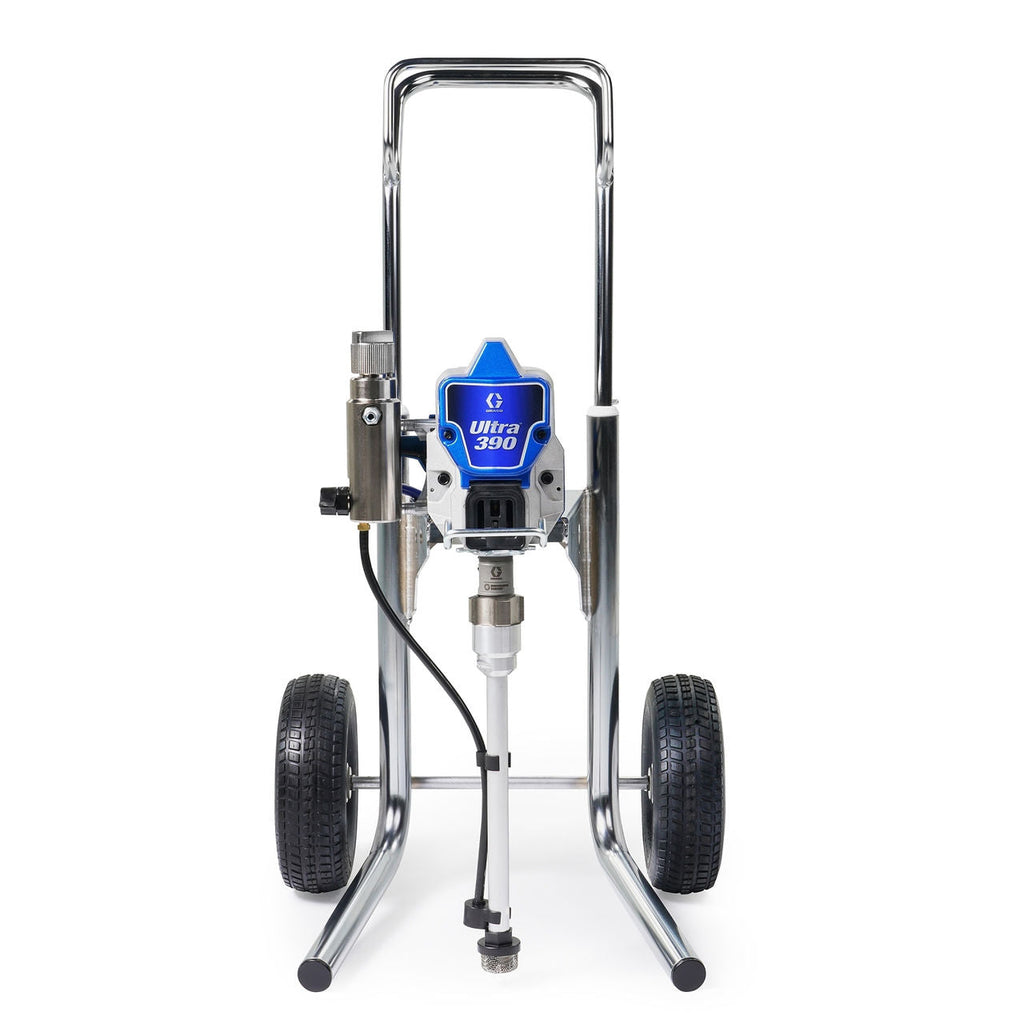

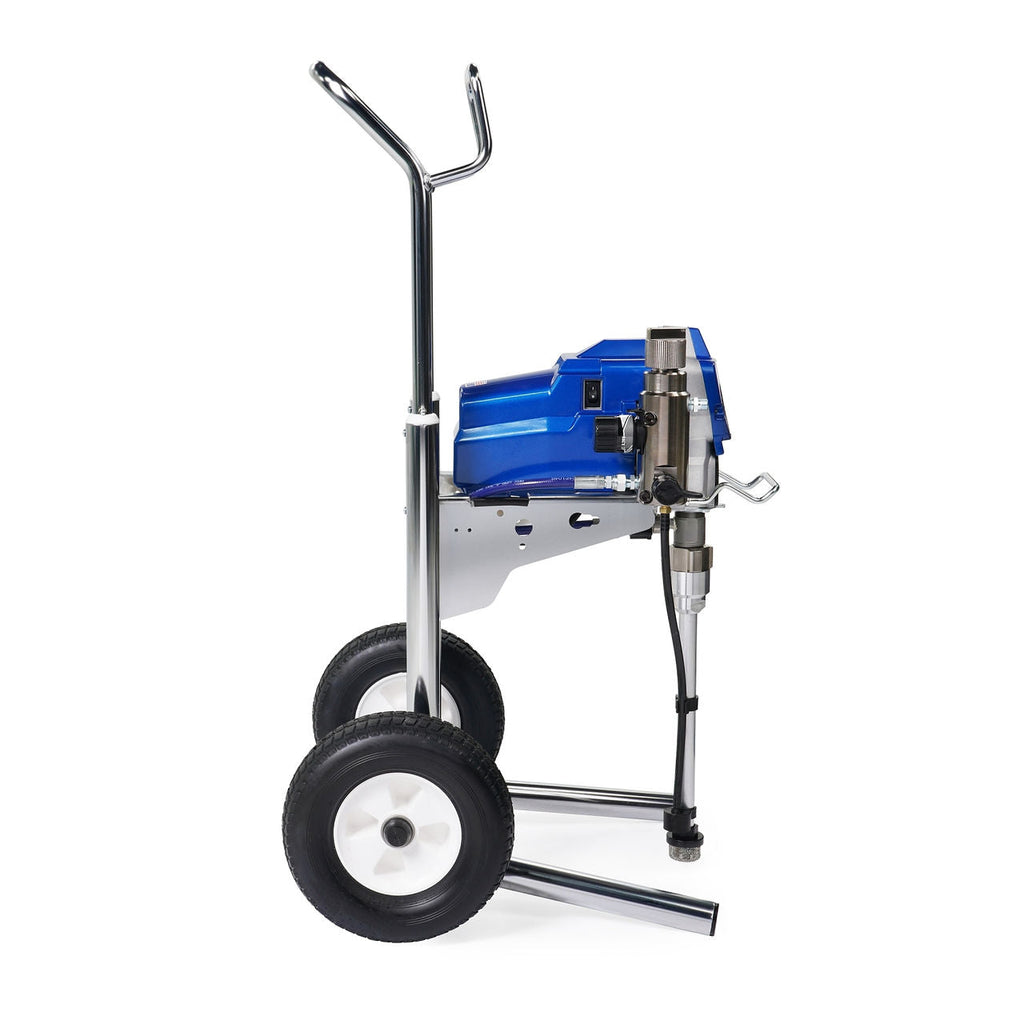

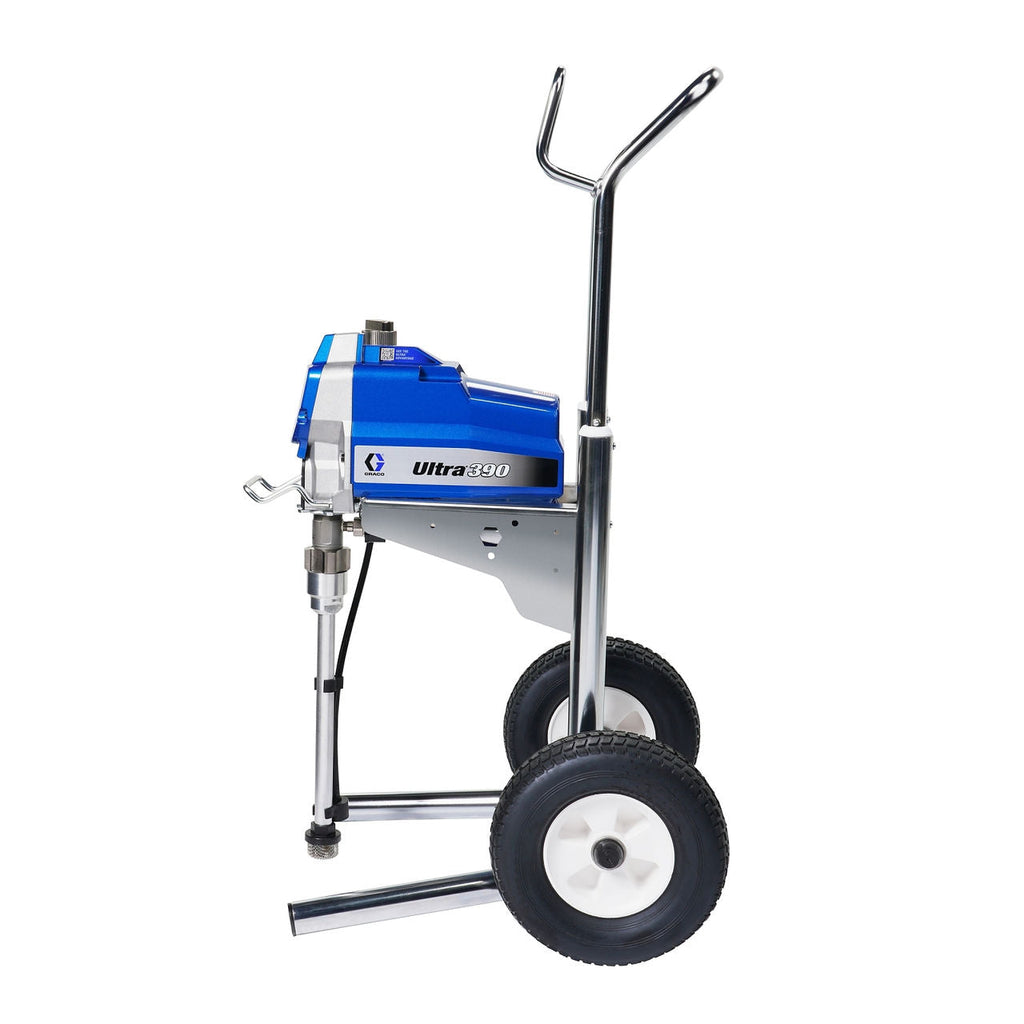

Graco Ultra 390 Hi-Cart Electric Airless Sprayer (25F518) with Value Pack

GRACO
Save 8%
$3,299.00
SKU: 25F518-B6

Quantity

Out of stock
Add to Cart
Out of stock
Add to cart
seen it cheaper

Pay in 4 interest-free payments with

Payment & Security | Refund Policy

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Graco Ultra 390 Hi-Cart Electric Airless Sprayer (25F518) with Value Pack
$3,299.00

Description

Compare Table

Click here to open table
  GX19 FF GX19 GX 21 190 PC Express Ultra 390 PC 390 PC Cordless
Warranty 1 year 1 year 1 year 1 year 3 years 3 years
Part Numbers: 25U855 17H223 17H219 Stand 17C384 Stand 25F517
Hi-Cart 25F518 		Stand 25T882
Max. Tip Size 0.019" 0.019" 0.021" 0.021" 0.021" 0.021"
Max. flow - I/min (gpm) 1.4 (0.38) 1.4 (0.38) 1.8(0.47) 1.8(0.47) 1.8(0.47) 1.8(0.47)
Max. pressure - bar (PSI) 207 (3000) 207 (3000) 207 (3000) 207 (3000) 228 (3300) 227 (3300)
Weight - Kg(Ibs) 16Kg 12.3Kg 13.2Kg 14Kg 12.25Kg 14Kg
Motor Power (hp) 0.5 DC  0.5 DC 0.87 DC 0.62 DC Brushless DC 0.62 DC
Frame     Direct Immersion   Stand
Hopper  ■  ■ Suction Tube
Ball Knocker - PushPrime Button  ■  ■ ■
Hydraulic Pressure Gauge  ■  ■ ■    ■  ■
ProXChange Pump System  ■  ■ ■
Pump Endurance Piston Endurance Piston Endurance Piston Endurance Piston Endurance Vortex Endurance Piston
ProConnect       ■ ■ ■
Control       Electronic Electronic Electronic
Tips   FFLP210 517 RAC X LTX 515 RAC X LTX 517 RAC X LTX 517
Guard RAC X - 246215 RAC X - 246215 RAC X - 246215 RAC X - 246215
Gun filter (mesh)   Easy OutTM 100 - 287033 Easy Out 60 - 288749
Gun Contractor PC FTx - 288430 FTx - 288430 FTx - 288430 FTx - 288430 Contractor PC
Pump filter (mesh)     40 - 288747
Hose 6.4mm x 15m BlueMax II airless hose 6.4mm x 15m BlueMax II airless hose 6.4mm x 15m BlueMax II airless hose 6.4mm x 15m BlueMax II airless hose 6.4mm x 15m BlueMax II airless hose 6.4mm x 15m BlueMax II airless hose
Links  GX19 FF GX19 390PC Cordless

Specifications

Operational Specifications

  • UPC product: 769946870060
  • Division: CED
  • Family code: FAMULS
  • Country of Origin: US
  • Unit of Measure: EA
  • Height: 80.01 CM
  • Length: 62.23 CM
  • Width: 54.61 CM
  • Volume: .272 M3
  • Shipping Weight: 31.75 KG

Technical specifications

  • Frame Configuration: Hi-Cart
  • Maximum Flow Rate (L/min): 1.8
  • Maximum Tip Size (in): 0.021
  • Maximum Working Pressure (psi): 3300
  • Maximum Working Pressure (MPa): 22.8
  • Model: Ultra
  • Maximum Working Pressure (bar): 228
  • Overall Height (cm): 101.6
  • Overall Height (in): 40
  • Weight (kg): 27.7
  • Overall Length (cm): 55.9
  • Overall Width (in): 20.5
  • Overall Length (in): 22
  • Series: 390
  • Overall Width (cm): 52.1
  • Minimum Generator Power (W): 3000
  • Cycles Per Gallon: 700
  • Sound Pressure Level (dB(A)): 90

Features

  • Endurance Vortex Pump: Utilizes a spiral motion to ensure seals and packings wear evenly, significantly increasing the pump's lifespan and reducing maintenance needs.
  • ProConnect System: Enables fast, on-the-job pump replacement in minutes to eliminate downtime.
  • Hi-Boy Portability: The cart-mounted design allows for easy manoeuvrability across any job site.
  • Advantage Drive: Features hardened steel gears for smooth, quiet, and reliable operation.
  • Chrome Coated Steel Frame: A rugged, lightweight frame that is easy to clean and resistant to rust.
  • Swivel Inlet Suction Hose: High-quality hose designed to stay submerged in the paint bucket while swivelling for easier movement.

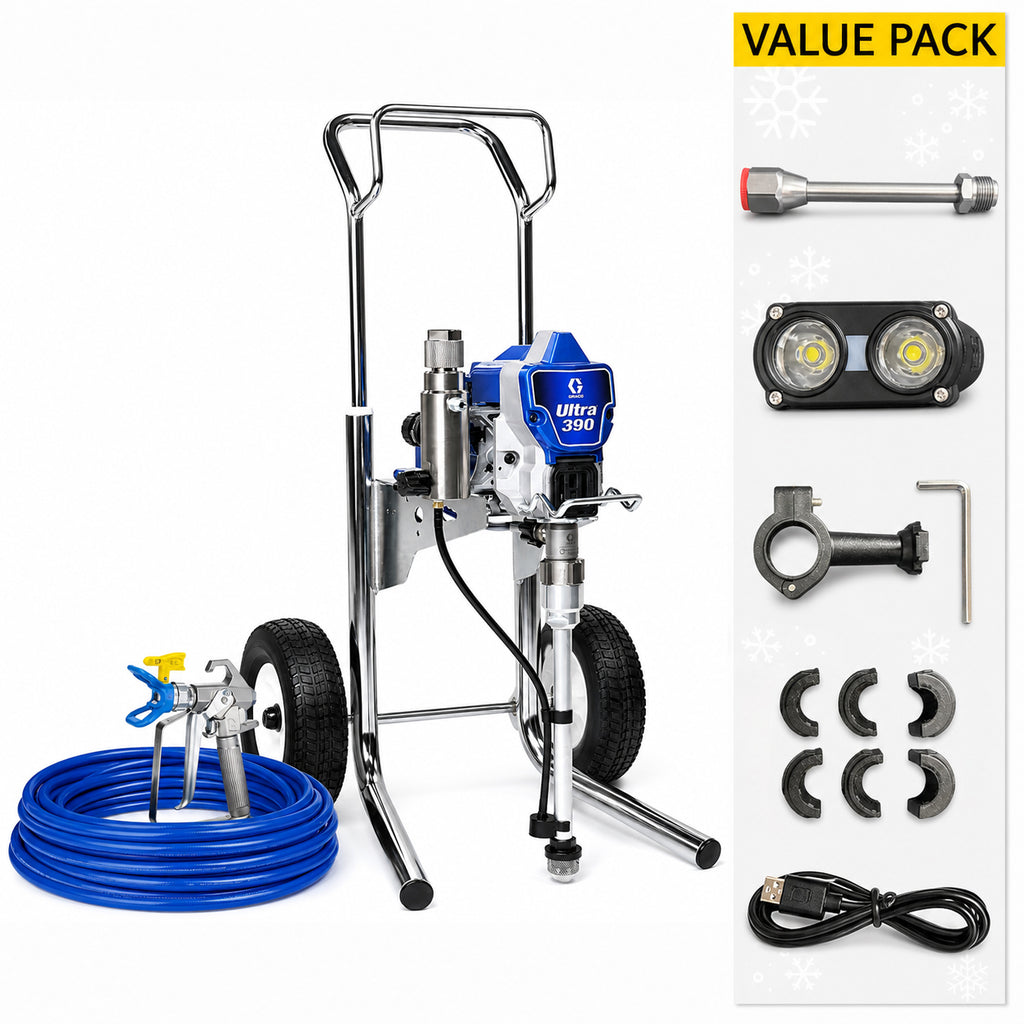

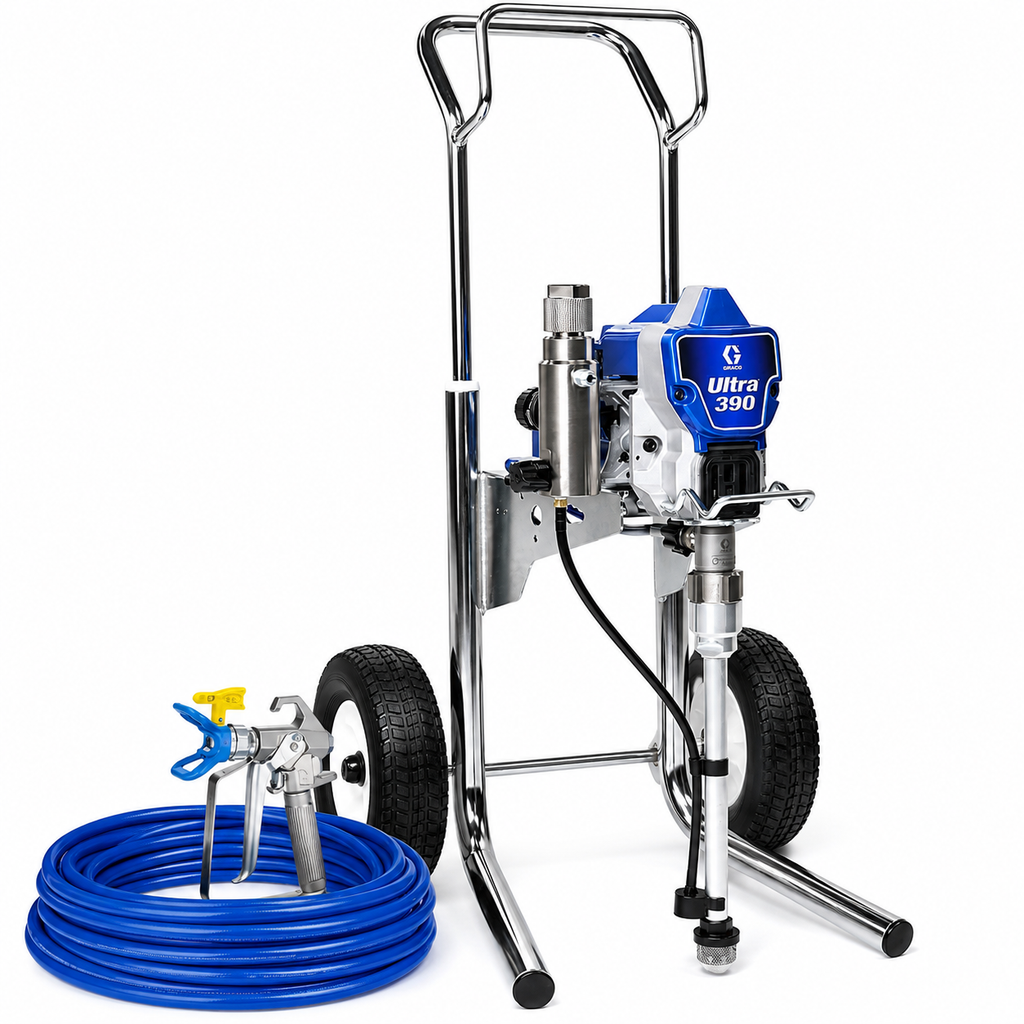

What's Included

Included with a sprayer:

  • Contractor FTx Gun
  • RAC X LP 517 SwitchTip
  • 1/4 in X 15 m BlueMax II Hose

Bonus:

Reviews

Dimensions

Width
Width
Height
Height
Length
Length
product
43.18 cm
50.80 cm
45.72 cm

Weight

Courier

May require help to carry

Total Weight: 21.68 kg
