Graco Ultra 390PC Hi-Boy Cart Electric Airless Sprayer 17C388

$1,759.00
SKU: 17C388

Quantity

Out of stock
Add to Cart
Out of stock
Add to cart

Payment & Security | Refund Policy

American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Union Pay Visa
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Graco Ultra 390PC Hi-Boy Cart Electric Airless Sprayer 17C388
$1,759.00

Description

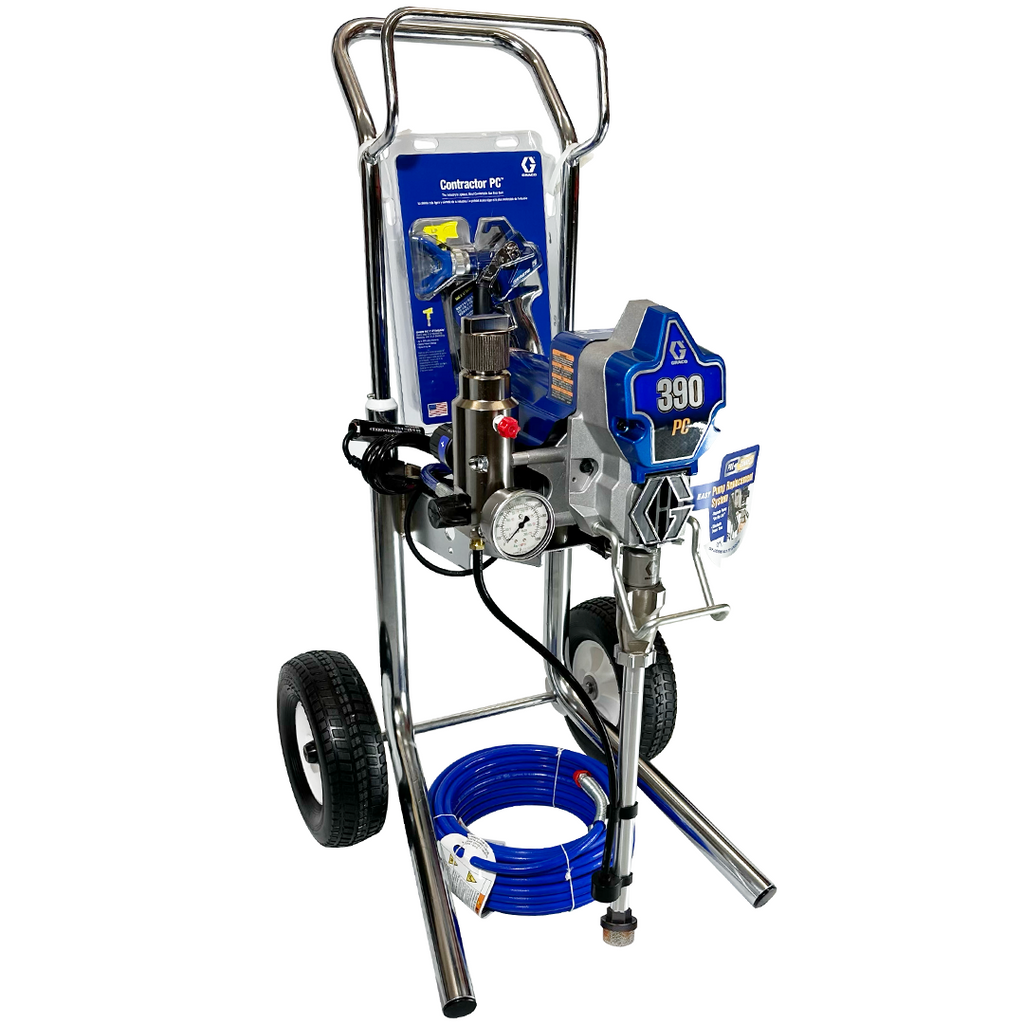

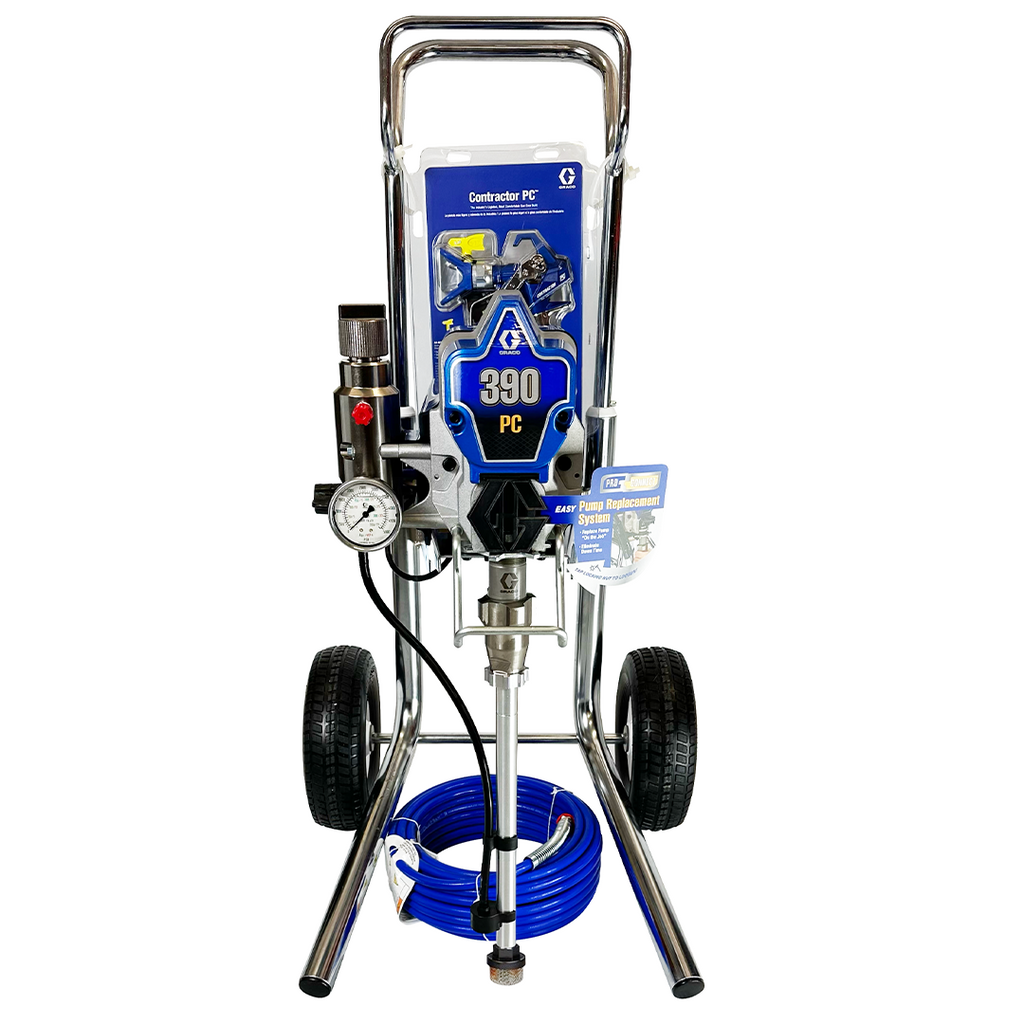

Graco Ultra 390PC Hi-Boy Cart Electric Airless Sprayer

The Graco 390 Hi-Boy Airless Sprayer is your go-to for the advanced painting job, allowing you to paint up to 6 times faster with a roller and up to 14 times faster with a brush. With the proper technique, this sprayer will speed up the job and give a smooth, pro finish.

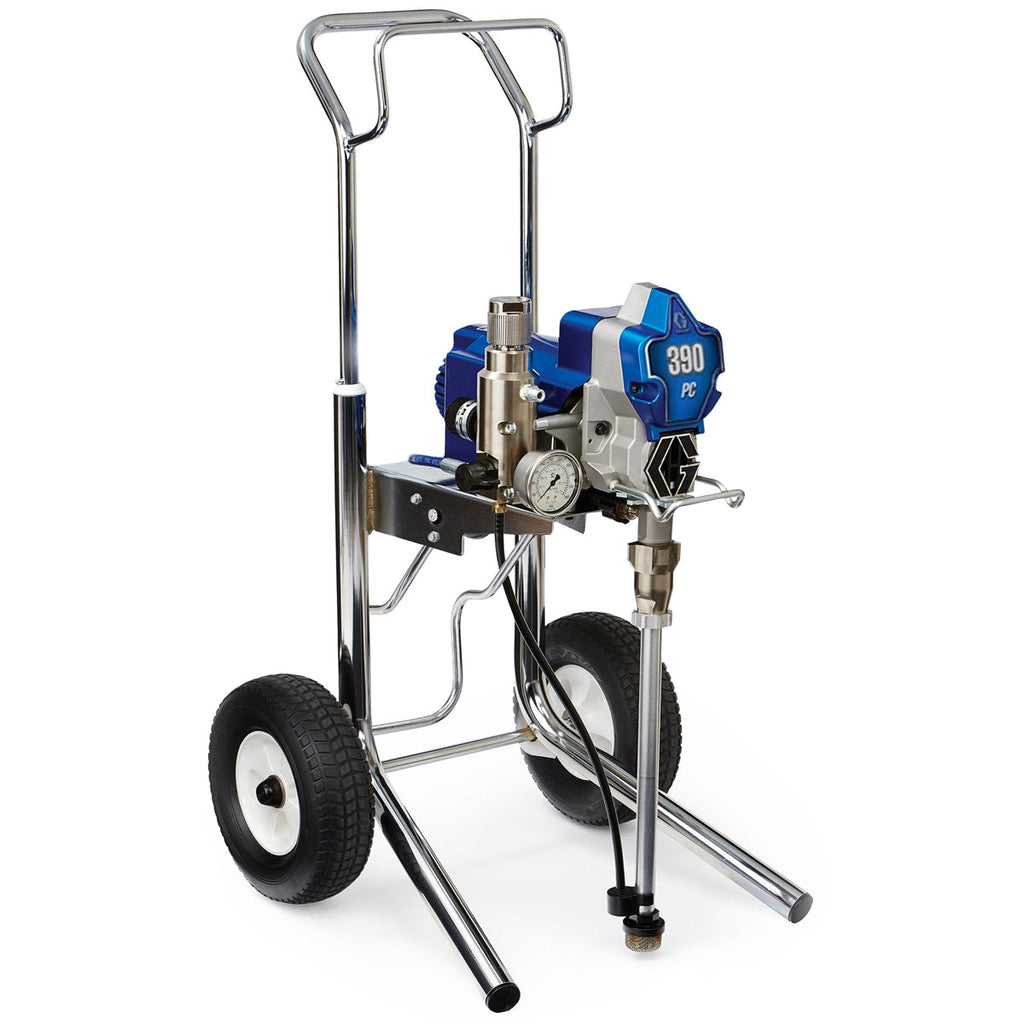

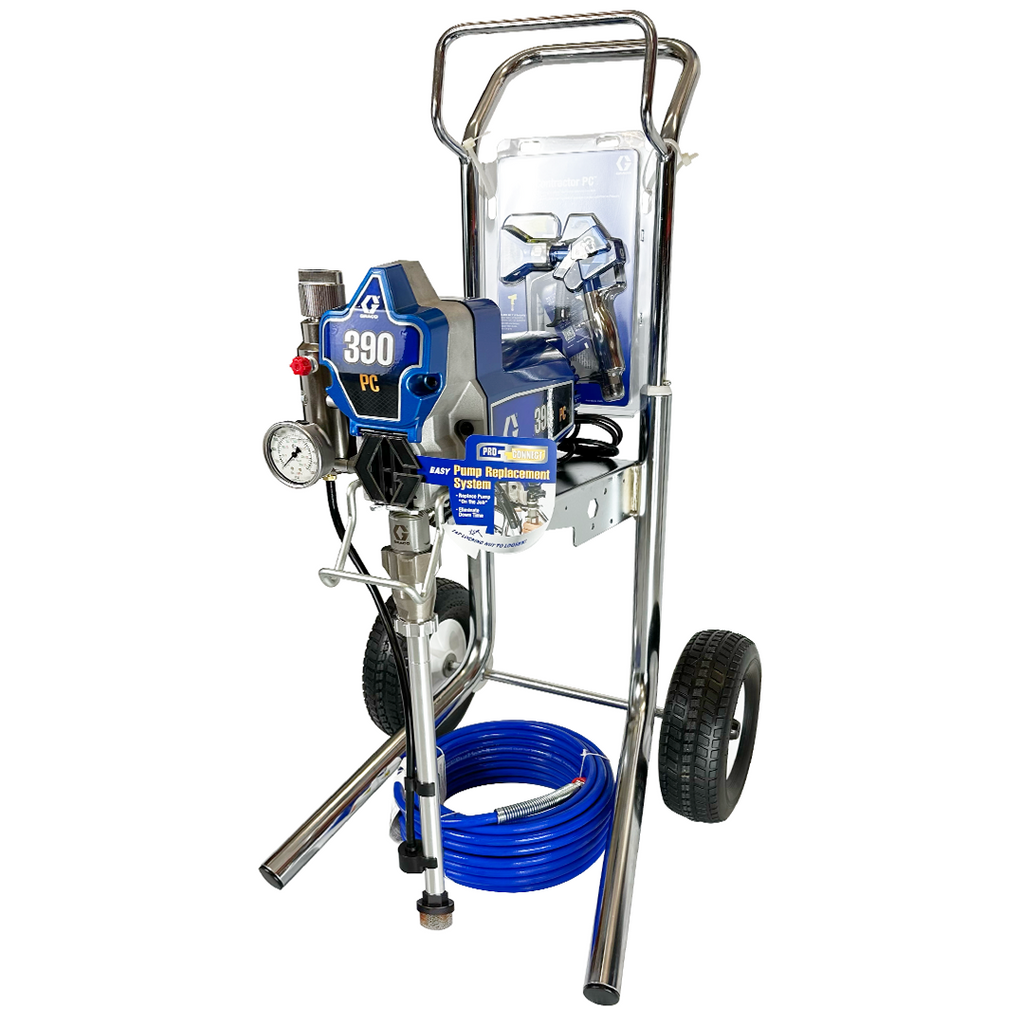

Hi-Boy has a very practical frame-mounted design that allows you to attach a paint bucket directly to the unit. This sprayer features wheels and a retractable handle that make the mobility of the unit so easy, perfect for both indoor and outdoor painting. Equipped with 17 kg, it's a bit heavier compared to the stand version, but additional mobility and convenience more than compensate. This design will be sufficient for new painters, DIYers, and serve as a good backup for a professional in smaller tasks or for minor touch-ups. However, this sprayer is not recommended for projects related to roofing. It is positioned in the professional range but considered entry-level; it handles a maximum tip size of 0.48 mm or 0.019 inches.

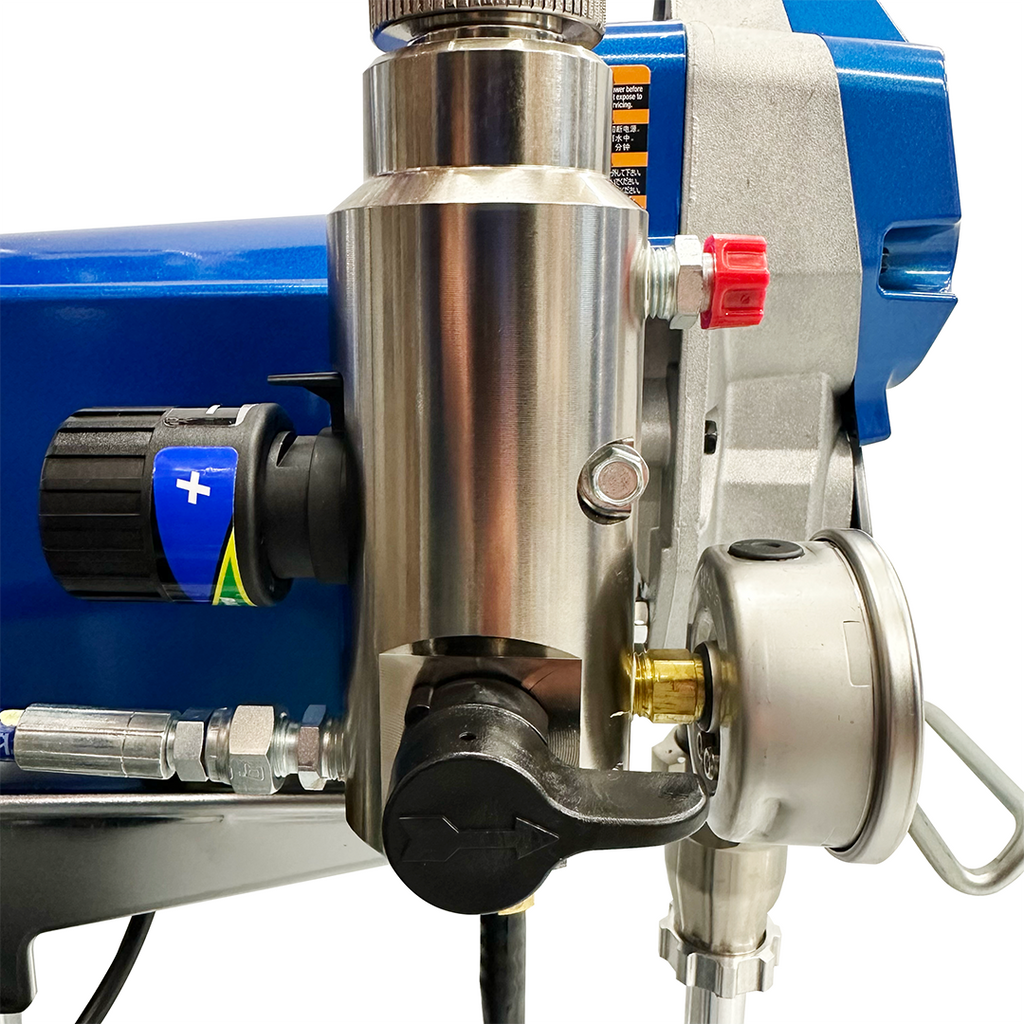

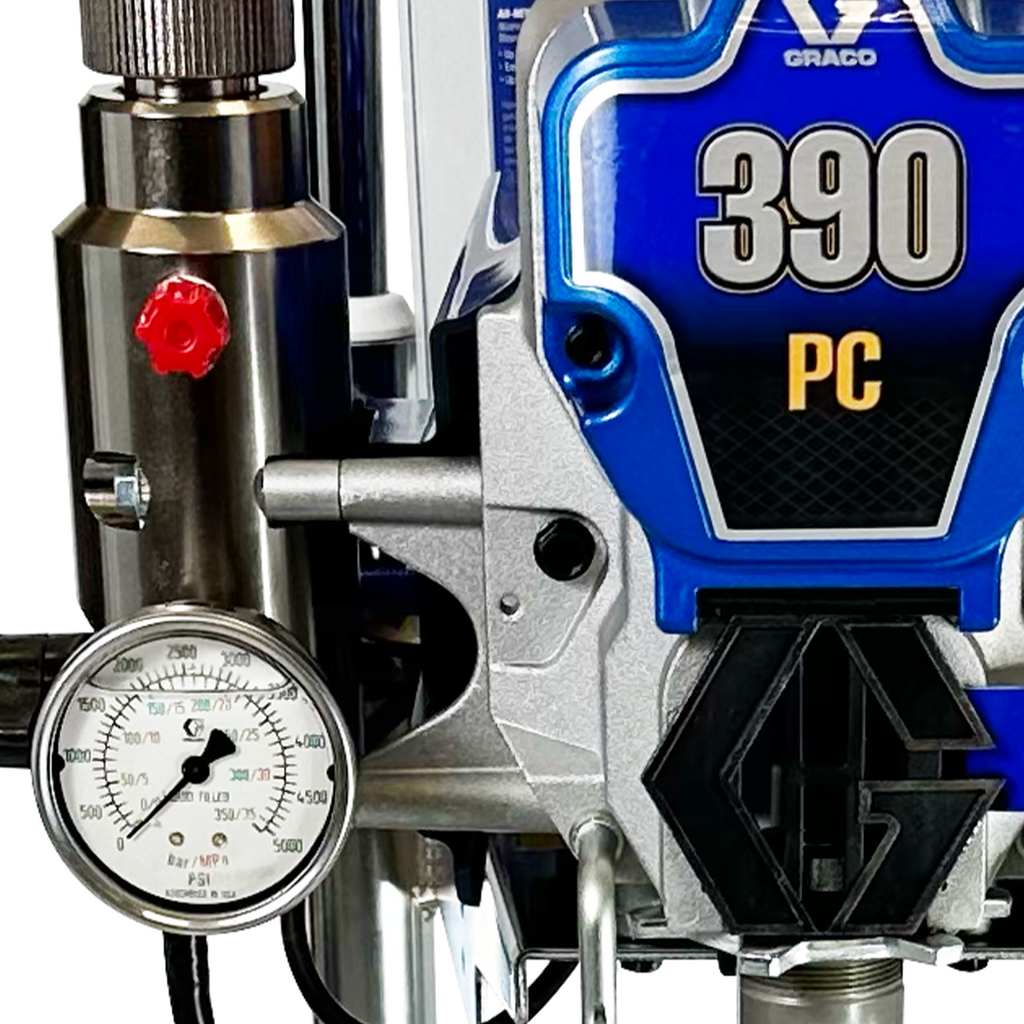

The 390PC is a versatile gun, which provides excellent handling for a wide variety of materials that come in varnish, lacquers, acrylics, primers, and undercoats. It features Graco's ProConnect system for quick and easy pump removal, making replacement straightforward. The Endurance Pump here is fitted with long-life V-Max components and dual inner valves to assure consistent performance. The QuickAccess intake valve makes cleaning simple. The sprayer keeps up the consistent pressure control necessary to produce a smooth spray pattern. This tool also features a separated filter on the body of the sprayer and a pressure gauge on the filter for precise adjustment.

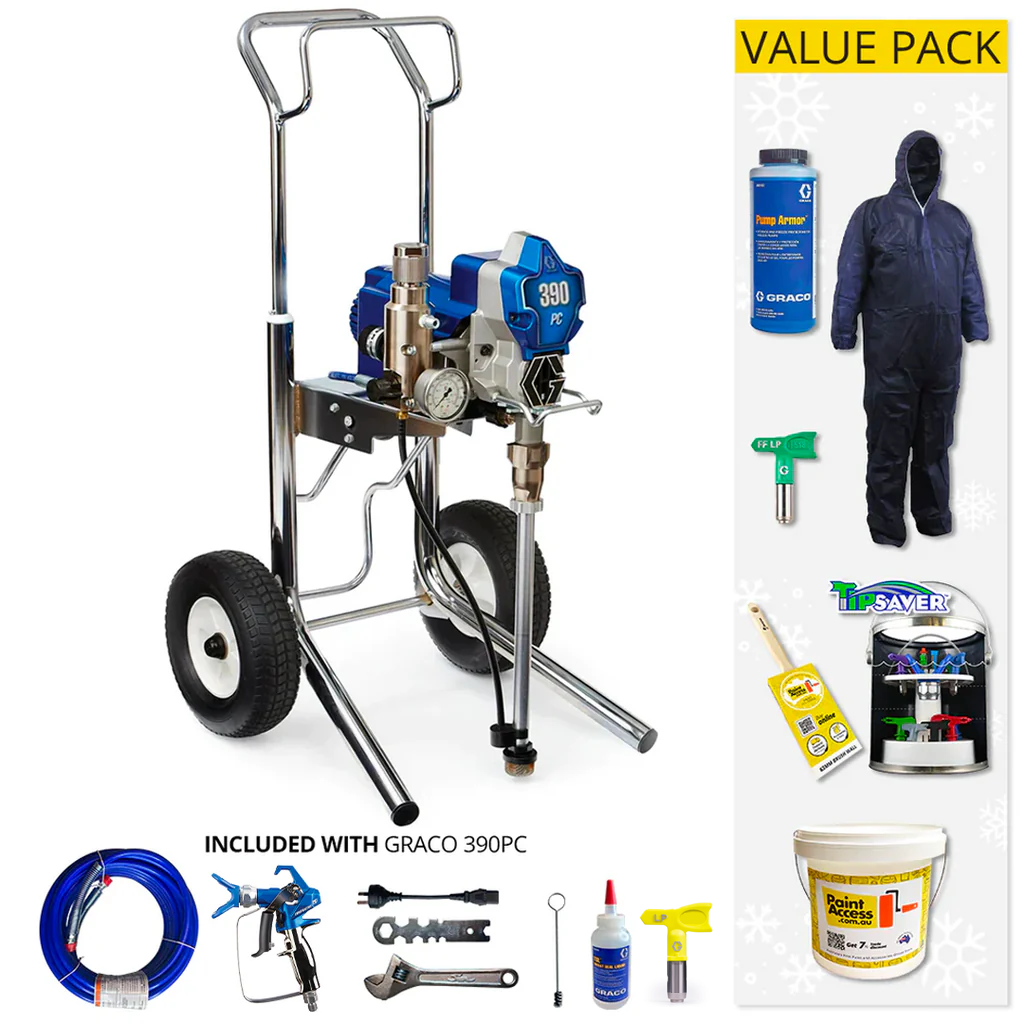

Kit includes the 390PC Hi-Boy unit; an enhanced Contractor PC pistol with a serviceable design; a gun mesh filter-50 mesh; and 6.4mm x 15m BlueMax II airless hose. Also included is the Low Pressure 517 tip. For added versatility, complement this with Graco's JetRoller products. In keeping your sprayer's optimal performance, don't forget to use Graco's Pump Armour along with Throat Seal Liquid in lubricating the pump on a regular basis.

The Graco 390PC is proudly manufactured in the USA and carries a three-year warranty to give you peace of mind regarding long-term reliability.

Makes spraying faster and easier!
  • Endurance Pump with long-life V-Max packings, Chromex rod and hardened stainless steel cylinder.
  • QuickAccess intake valve to easily clean or clear debris.
  • Consistent pressure control delivers quality spray pattern with minimal fluctuation.
  • Easy Out Pump Filter - reduces tip clogs and ensures quality finish.
  • Swivel Inlet Suction Hose - solid aluminium construction and no tools removal of hose.


Compare Table

Click here to open table
GX 21 190 PC Express 390 PC 395 PC PRO
Warranty 1 year 1 year 1 year 1 year
Part Numbers: 17H219 Stand 17C384 Stand 17C386
Lo-Boy 17C387
Hi-Boy 17C388
Stand 17E881
Max. Tip Size 0.021" 0.021" 0.021" 0.023"
Max. flow - I/min (gpm) 1.8(0.47) 1.8(0.47) 1.8(0.47) 2.0(0.52)
Max. pressure - bar (PSI) 207 (3000) 207 (3000) 227 (3300) 227 (3300)
Weight - Kg(Ibs) 13.2Kg 14Kg Stand 17C386 - 14Kg
Lo-Boy 17C387 - 20Kg
Hi-Boy 17C388 - 24Kg
19Kg
Motor Power (hp) 0.87 DC 0.62 DC 0.62 DC 0.87 TEFC DC
Frame Direct Immersion
Hopper Suction Tube
Ball Knocker - PushPrime Button
Hydraulic Pressure Gauge
ProXChange Pump System
Pump Endurance Piston Endurance Piston Endurance Piston Endurance Piston
ProConnect
Control Electronic Electronic SmartControl 1.0
Tips 517 RAC X LTX 515 RAC X LTX 517 RAC X LTX 517 LP 315
Guard RAC X - 246215 RAC X - 246215
Gun filter (mesh) Easy Out 60 - 288749
Gun SG3 SG3 Contractor PC Contractor PC
Pump filter (mesh) 40 - 288747
Hose 1/4" x 15m - 247340 Blue Max II Airless 64 mm x 15m (1/4 in x 50ft) Blue Max II Airless 64 mm x 15m (1/4 in x 50ft) Blue Max II Airless 64 mm x 15m (1/4 in x 50ft)

Videos

Specifications

Power Requirements:

230V AC, 50/60 Hz, 7.5A, Single Phase

Generator Minimum Wattage: 3000 watts

Maximum Working Pressure: 22.8 MPa (3300 PSI)

Maximum Delivery Rate:

1.78 liters per minute (0.47 gallons per minute)

Maximum Tip Size: 0.021"

Cycles: 680 cycles per gallon

Fluid Outlet Size: 6.35 mm (1/4 inch)

Weight:

Standard: 13.6 kg (30 lbs)

With gauge: 14.1 kg (31 lbs)

Wetted Parts: The sprayer includes components made from zinc and nickel-plated carbon steel, nylon, stainless steel, PTFE (Teflon), Acetal, leather, UHMWPE (ultra-high-molecular-weight polyethylene), aluminum, and tungsten carbide.

Noise Levels:

Sound Power: 100 dBa

Sound Pressure: 90 dBa (measured at 1 meter, according to ISO 3744 standards)

Features

  • Endurance™ Chromex Piston Pump
    This pump is highly durable, lasting twice as long as the next leading brand. It features V-Max Blue Packings and a Chromex rod, combined with a hardened stainless steel cylinder, which ensures longevity and reliability. The QuikAccess™ intake valve allows for faster and easier cleaning.
  • Advantage Drive
    Equipped with hardened steel gears, this drive system operates quietly and comes with a lifetime warranty.

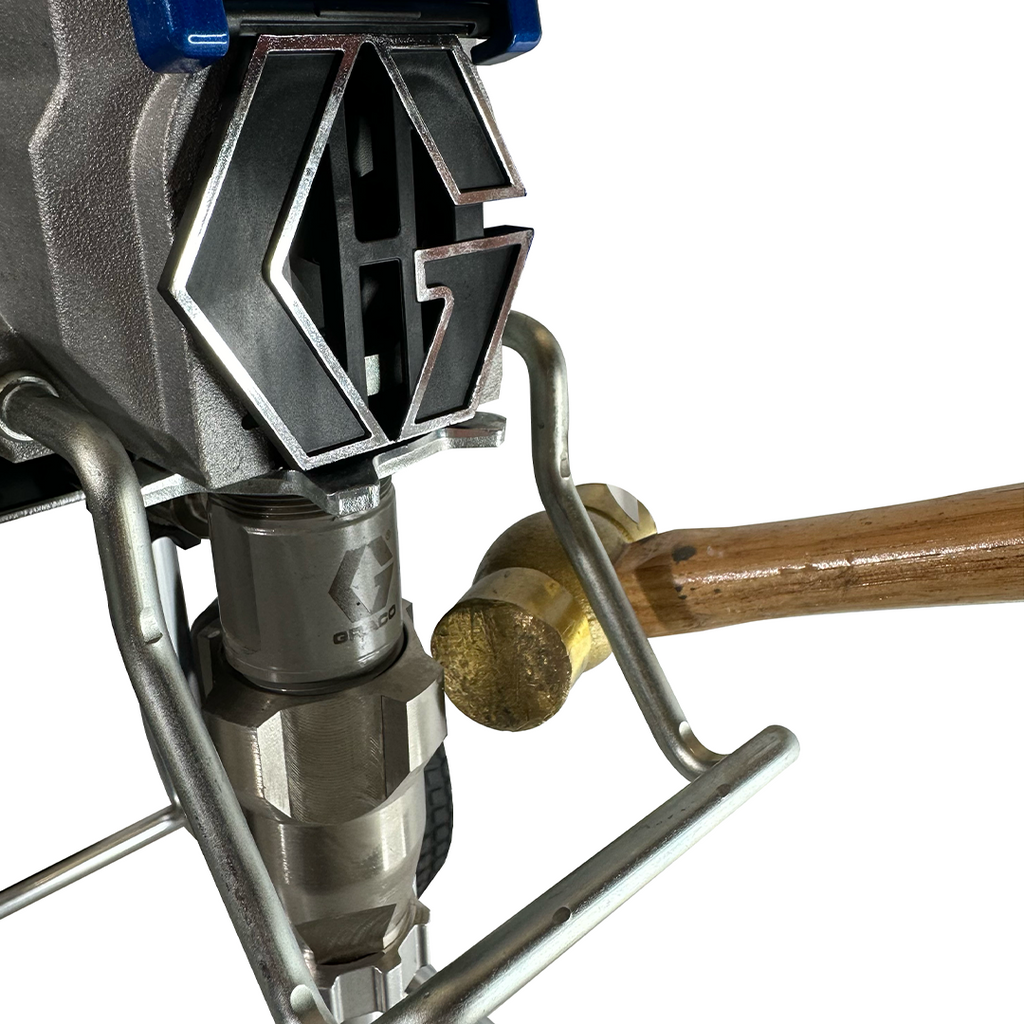

  • ProConnect Pump Replacement System
    This system allows for quick, tool-free pump replacements in just a few minutes, reducing downtime and increasing efficiency on the job site.
  • Easy Out Pump Filter

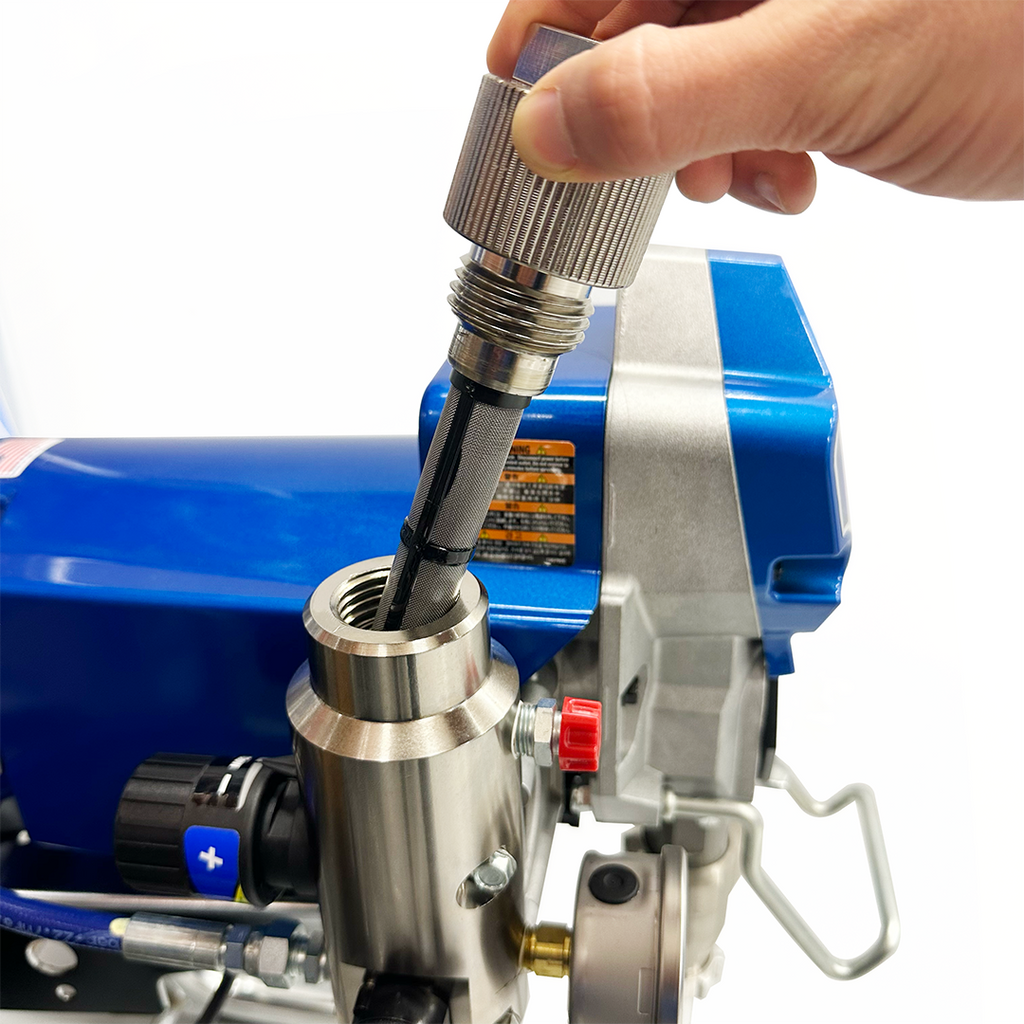

    The vertical design of the pump filter helps eliminate spills and makes maintenance easy. The inside-out filtering process reduces tip clogs, ensuring a consistent finish.
  • Rugged Steel Frame
    The frame is made of thick chrome over steel, providing durability and stability, even in harsh environments. The semi-pneumatic wheels and heavy-duty handles make it easy to move over rough terrain.
  • Variable Pressure Control
    Allows for precise adjustment of pressure, with a position indicator for repeatable settings, suitable for spraying a variety of materials from light to heavy.
  • Durable Cart Design
    The design allows for easy bucket changes by a single person and includes a retractable handle that doubles as hose storage.

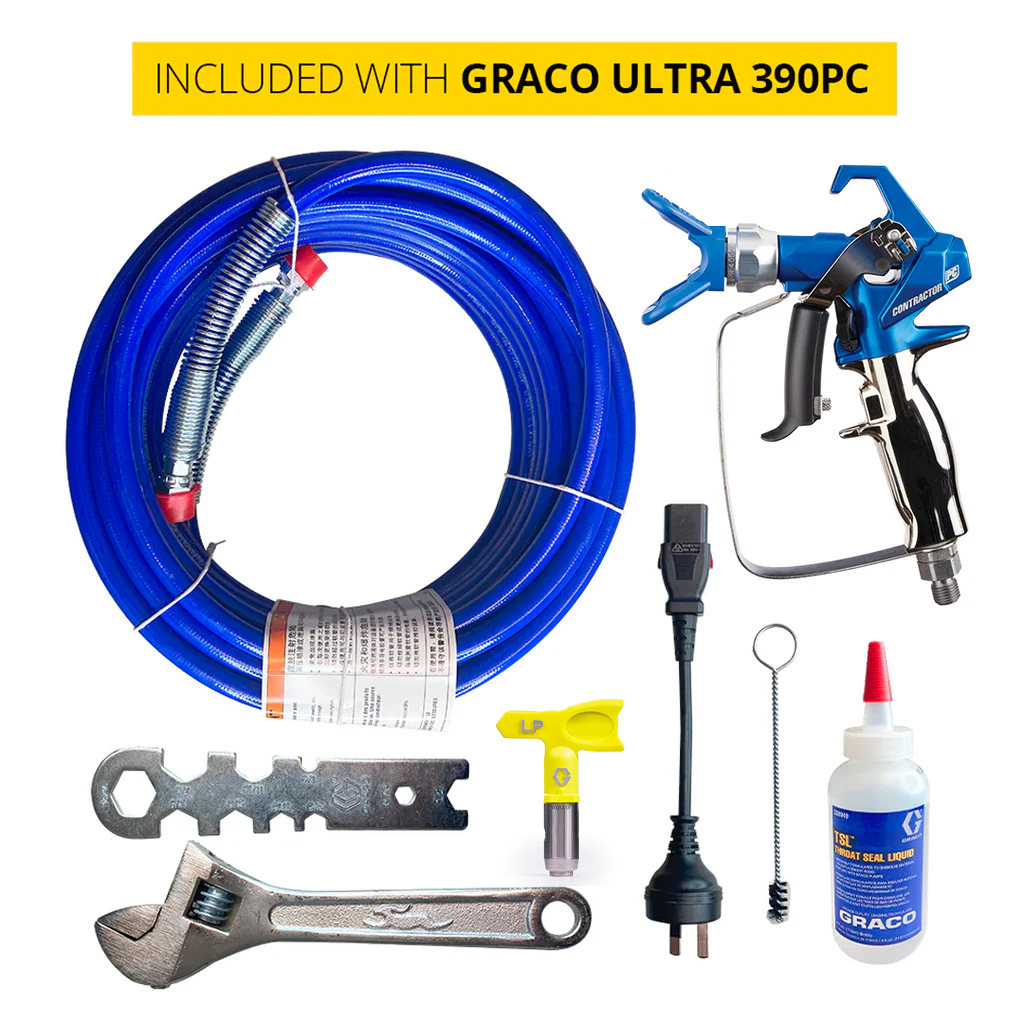

What's Included

  • Graco 390 PC Hi-Boy Airless Unit
    The main sprayer unit with all the standard features.
  • Contractor FTx Airless Spray Gun
    A professional-grade spray gun designed for daily use.
  • RAC X™ 517 SwitchTip™ and Guard
    A reversible tip for reducing downtime due to clogs.
  • 1/4 in x 15 m (50 ft) BlueMax™ II Airless Hose
    A durable and flexible hose for easy maneuverability.
  • Throat Seal Liquid small bottle

Reviews

Dimensions

Width
Width
Height
Height
Length
Length
product
63.50 cm
78.74 cm
55.88 cm

Weight

Courier

May require help to carry

Total Weight: 35.38 kg
