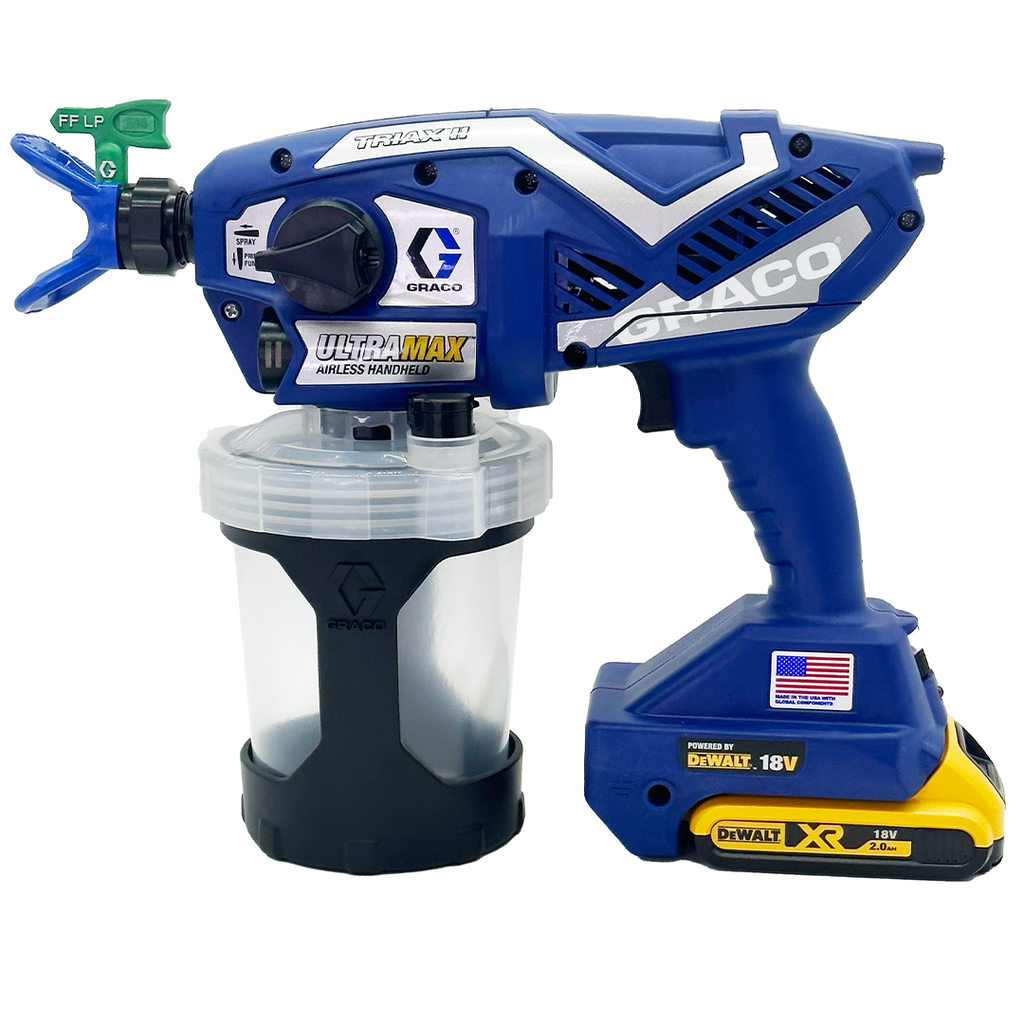

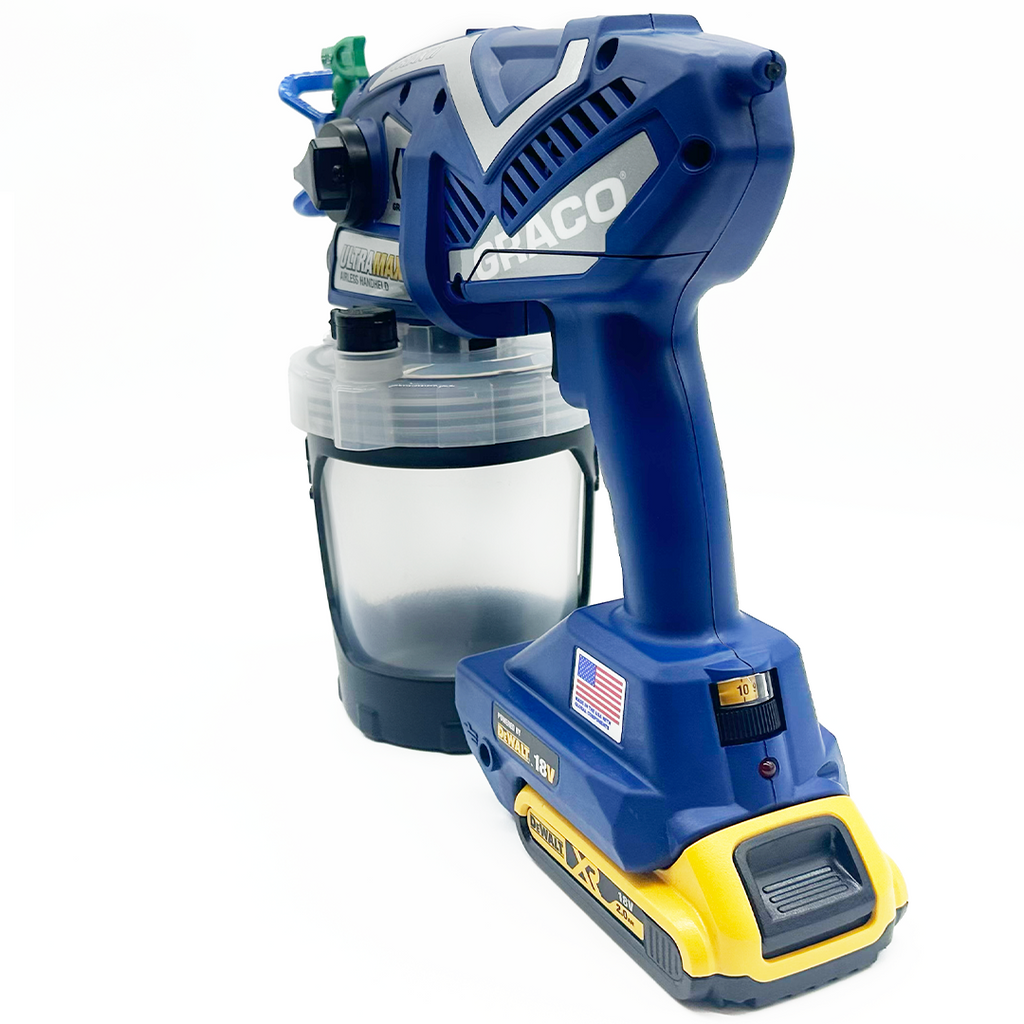

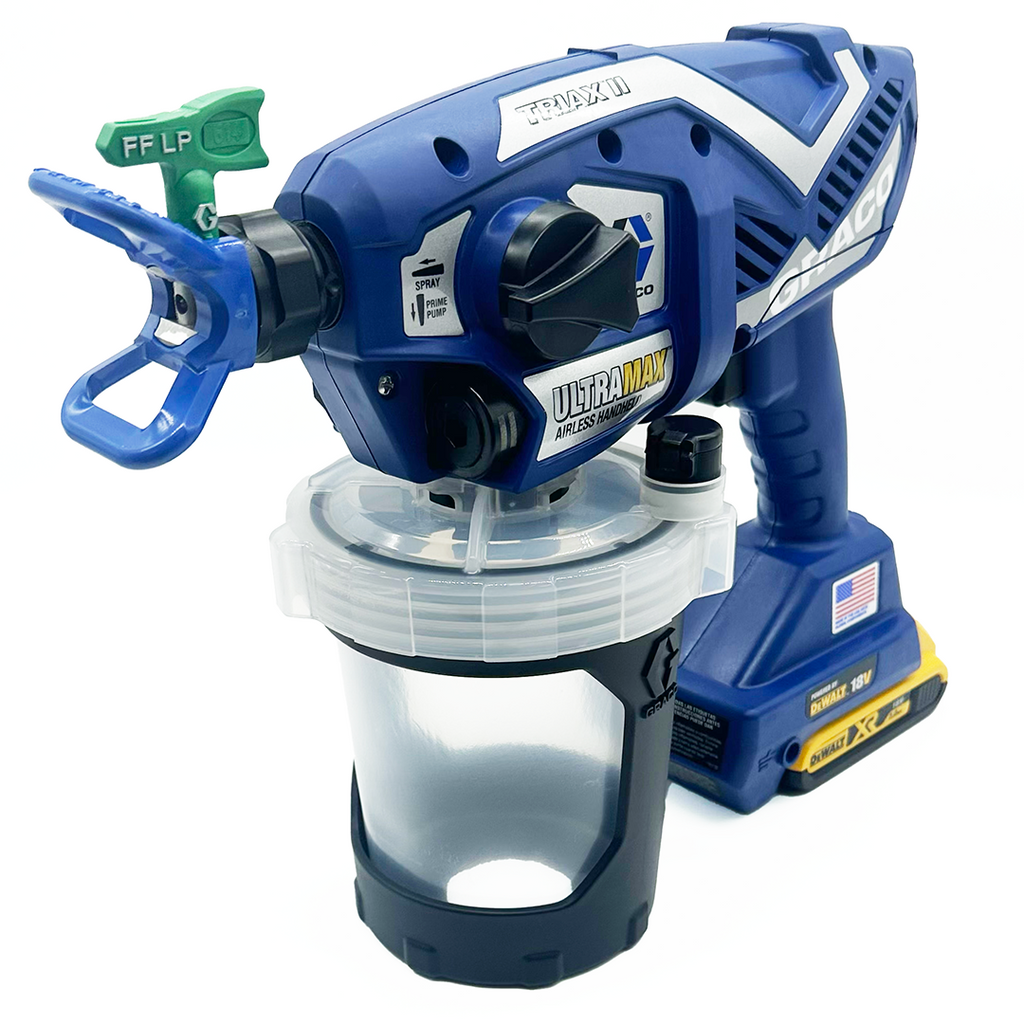

Graco Ultra MAX Cordless Airless Handheld Sprayer with DeWalt Battery - Great for Water and Oil Based Paints (17N225)
$750.00

Description

Graco Ultra MAX Cordless Airless Handheld Sprayer with DeWalt Battery - Great for Water and Oil Based Paints

Great News! The new Triax II pump has arrived

Graco Ultra MAX Cordless Airless Handheld Sprayer with DeWalt Battery

NOW AVAILABLE!

The Graco Ultra Max can be used with both water and oil based paints!

Graco Ultra airless handheld sprayers are designed specifically for small interior, exterior and specialty projects. The true advantages of the Ultra handheld sprayers are the perfect airless finish it produces, ultimate portability on the job, and that it is ready to spray in seconds.

Painting contractors can easily spray those small jobs without having to start-up their larger airless sprayers.

Sprays a wider range of materials than older models. The Ultra MAX handheld can spray primers, stains, water-based paints, acrylics, oil-based paints, enamels and latex. Sprays water, solvent mineral spirits and flammable compound based materials. Spray in any direction, even upside down!

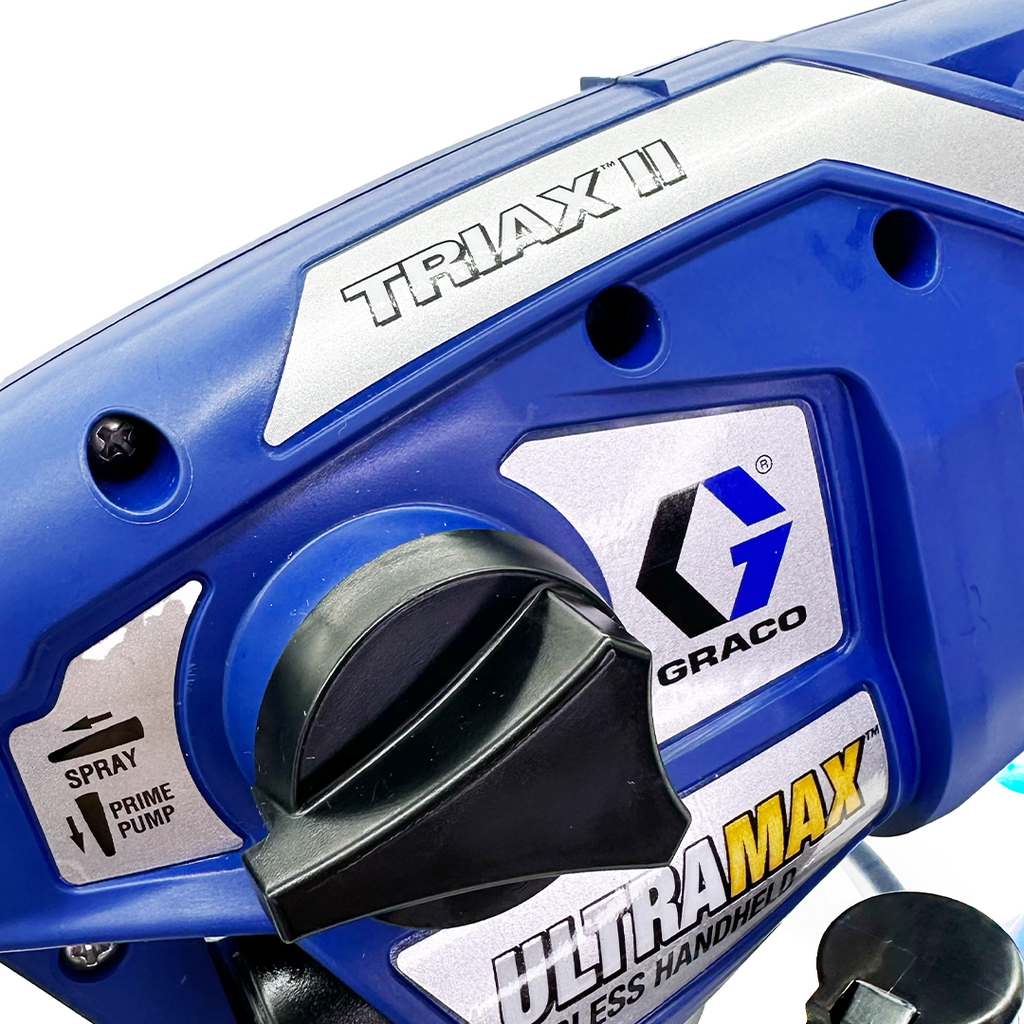

Triax II Triple Piston Pump - unmatched performance!

  • Durable stainless steel and carbide components bonded with a high strength polymer
  • Incredible durability in a light weight design
  • 500-2,000 PSI
  • .008-.016 Tip Support

Reliable Startup

  • No inlet check valve to get stuck
  • Automatic outlet ball knocker

Perfect airless finish

  • Smooth and even at any hand speed
  • No thinning
  • Single coat coverage

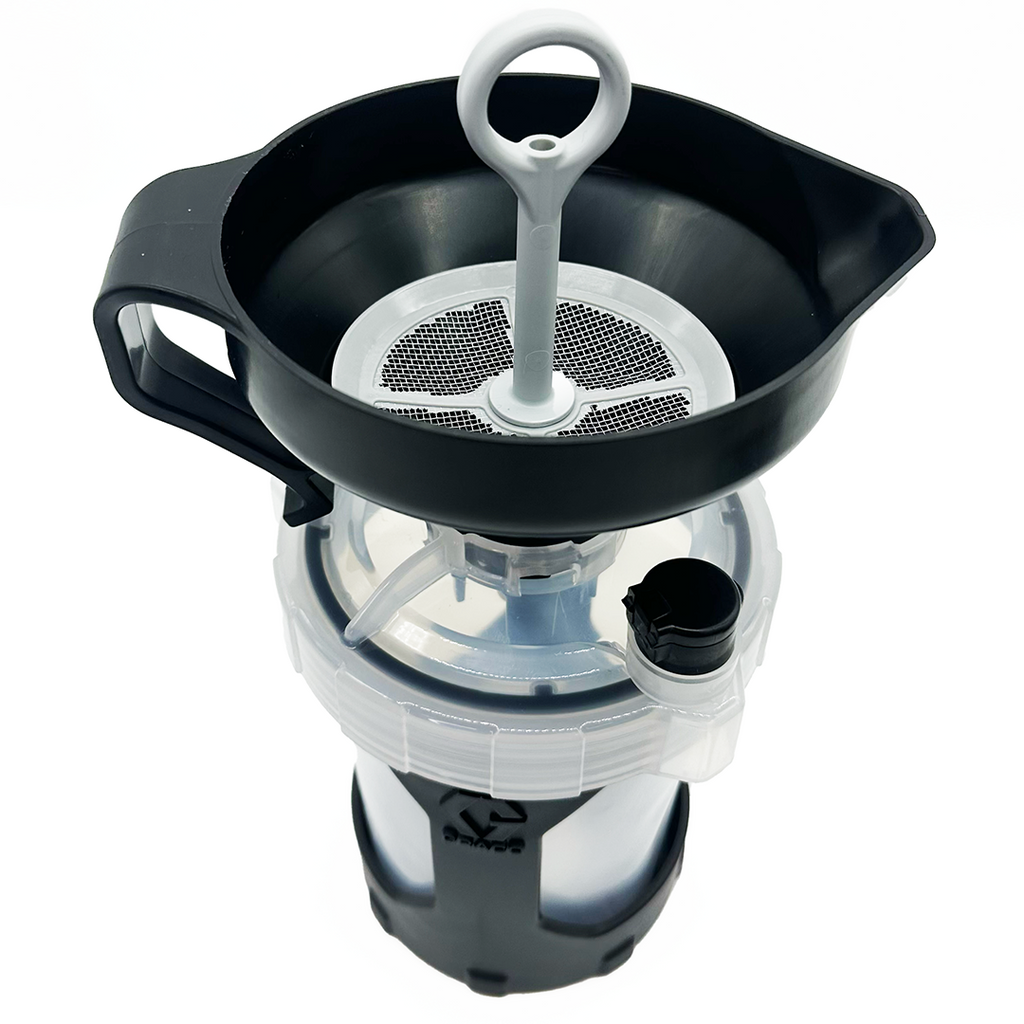

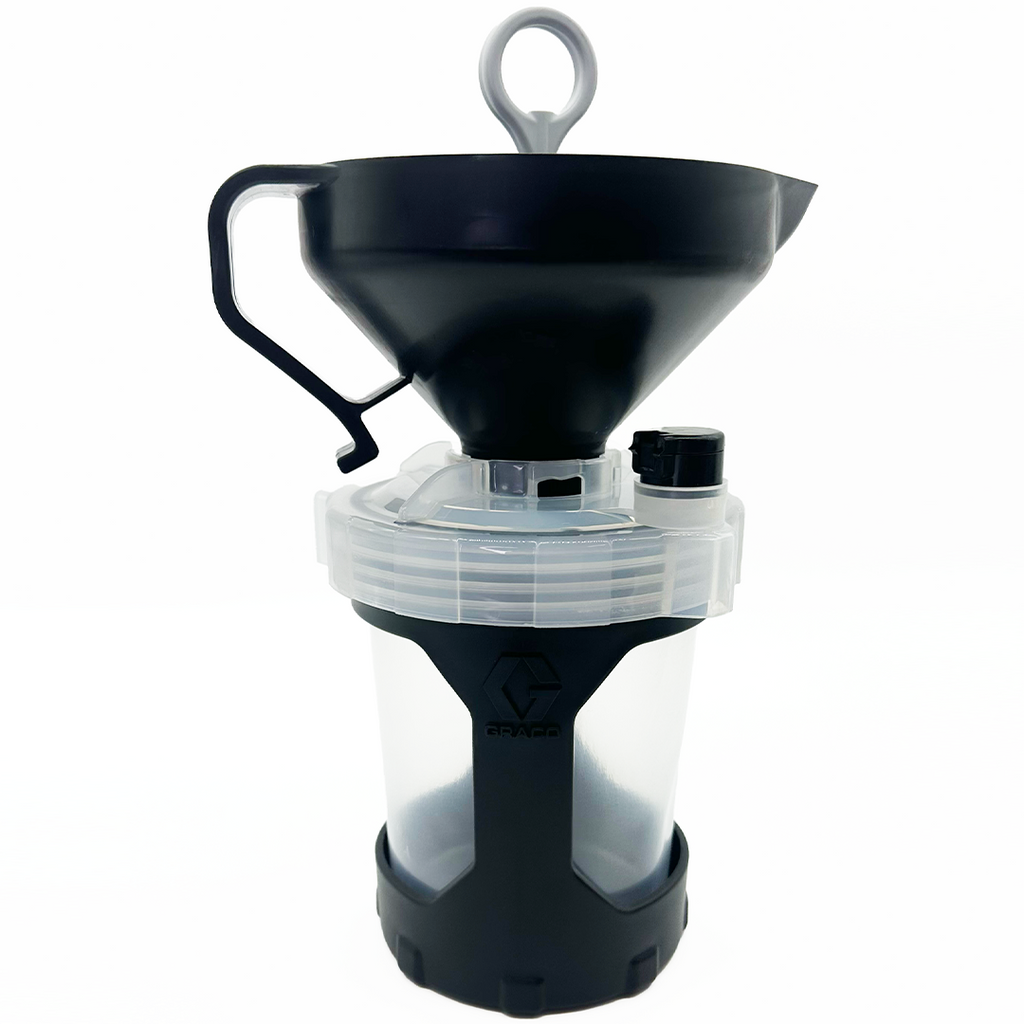

Graco Funnel Strainer Kit

Filling just got easier and cleaner with the Graco FlexLiner strainer and funnel system. Attach the Graco FlexLiner strainer and funnel system to any Graco airless handheld FlexLiner systems to easily strain your paint while you fill your FlexLiner cups.

Compatiable with Graco paint sprayers that have the FlexLiner paint bag.

  • Reduce debris in your paint for the perfect finish while also reducing tip clogs
  • Eliminate the mess with the easy to use funnel
  • Quickly attaches to the FlexLiner lid and hooks to the funnel on paint can for easy storage between fills
  • Use with all Graco handheld airless FlexLiners systems
  • Includes both strainer and funnel






Powered by DEWALT XR Lithium Ion System - guaranteed tough!

Proven quality, contractor recognised battery manufacturer

  • 3-LED fuel gauge system allows immediate feedback on state of charge
  • Lightweight design and 30% faster charge time (35 minutes)
  • Each cordless machine comes standard with 2 batteries
  • Compatible with any DEWALT 18V Lithium Ion battery

Spray up to 3.5 litres with each charge thanks to the DEWALT 18V Lithium Ion system






ProConnect

On-the-job pump replacement system

One tool replacement - replace the pump in 3 steps using only a screwdriver

  • Remove screws and door
  • Remove and replace pump
  • Reinstall door and screws






SmartControl

Spray at any hand speed with professional finish every time

Precision pressure control that delivers a consistent spray fan without pressure fluctuations






RAC X FF LP Tips

Provides superior finish at low pressure

Works with all Graco airless sprayers - everything from handhelds to large airless

Large range of sizes available to meet job requirements

Reverse-A-Clean (RAC) SwitchTips deliver exceptional spraying results and make cleaning tip clogs simple






32 oz FlexLiner Paint Bags

Disposable liners eliminate cleanup time

Easy Setup

  • Fill FlexLiner Bag with material and attach to the handheld
  • Squeeze out any remaining air
  • Spray

Easy Cleanup

  • Fill FlexLiner Bag with cleaning fluid like PumpArmor
  • Shake sprayer
  • Spray into a bucket

No suction tube to clean

Toss or reuse, it's your choice

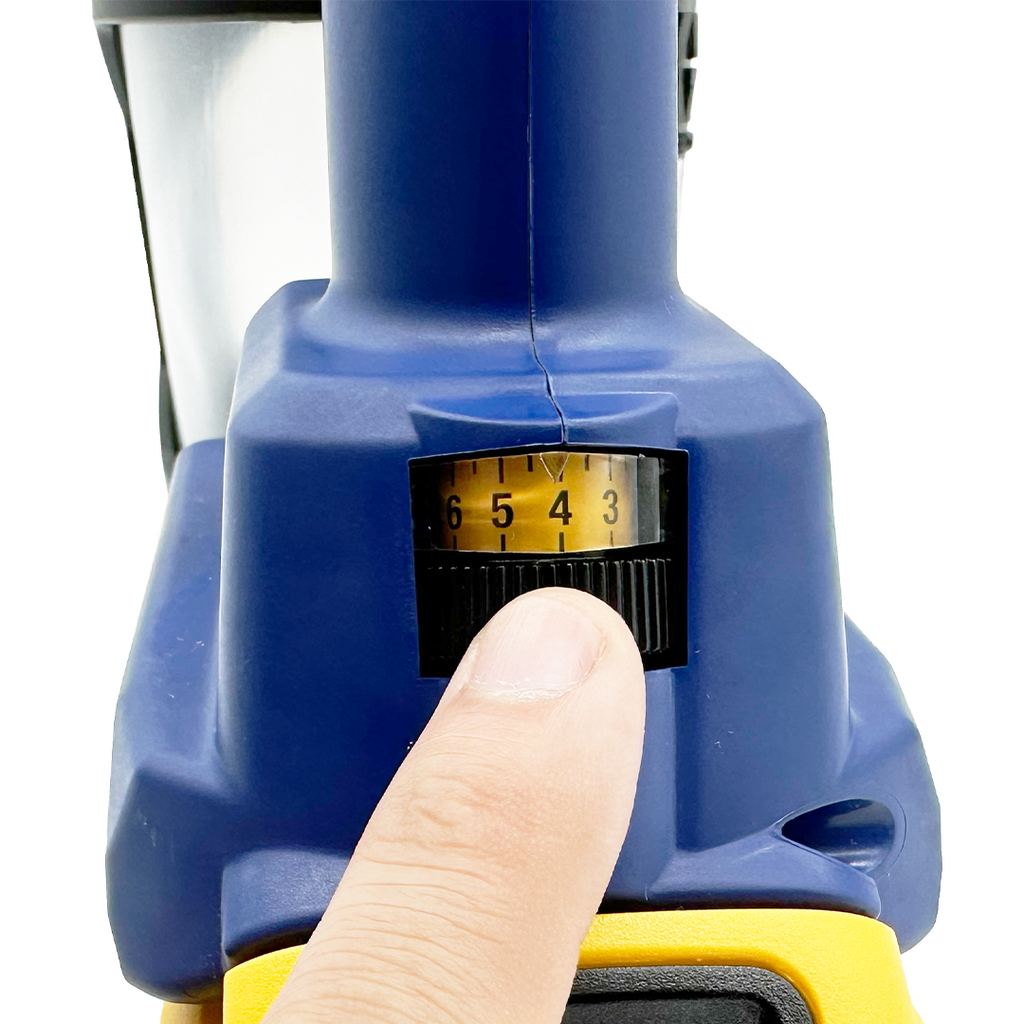

ProControl

Graco's ProControl puts you in control!

  • Adjust motor speed to spray at virtually any speed that the job demands - hear it working
  • More control allows users to spray at the speed they choose - a professional finish, fast or slow






Hot Solvent Compatible

Sprays hot solvents such as solvent-based lacquer

Can spray everything from water to solvents and flammable compound-based materials

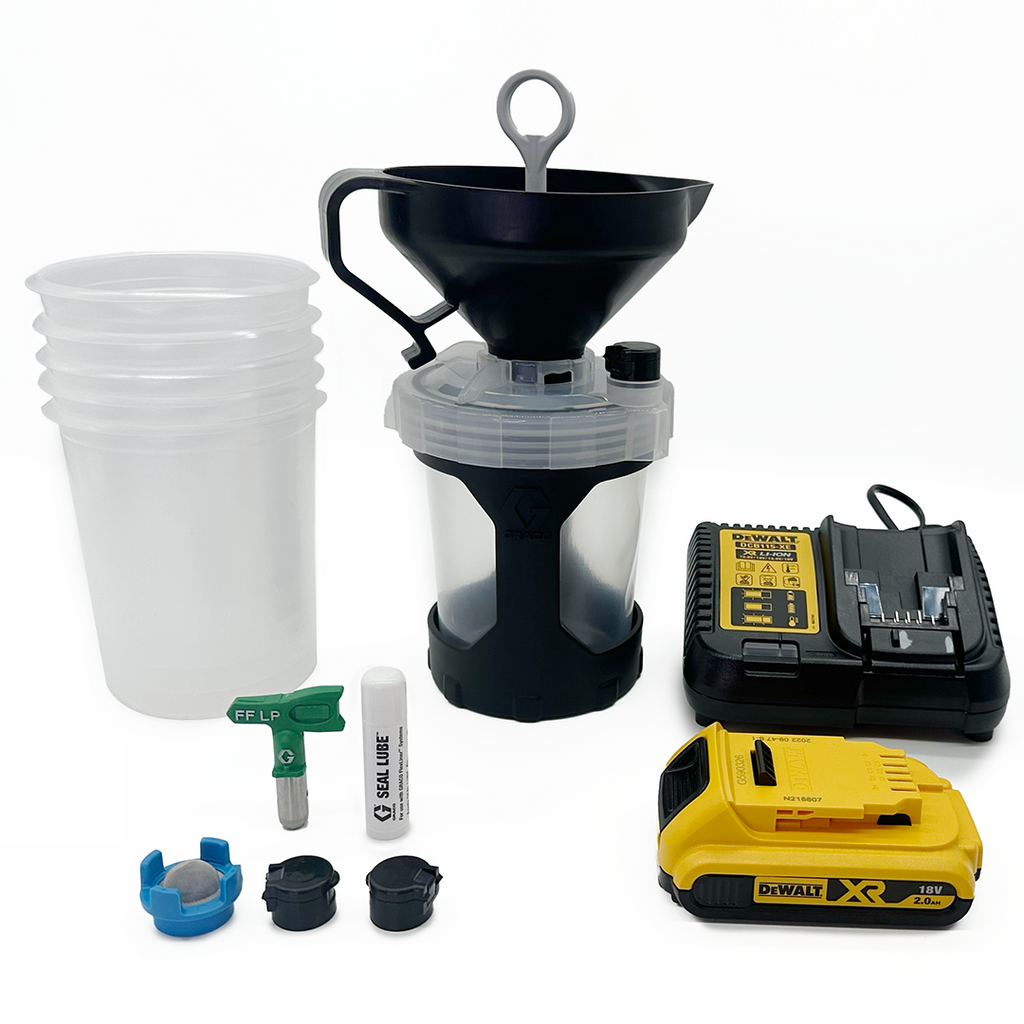

Just Add Paint

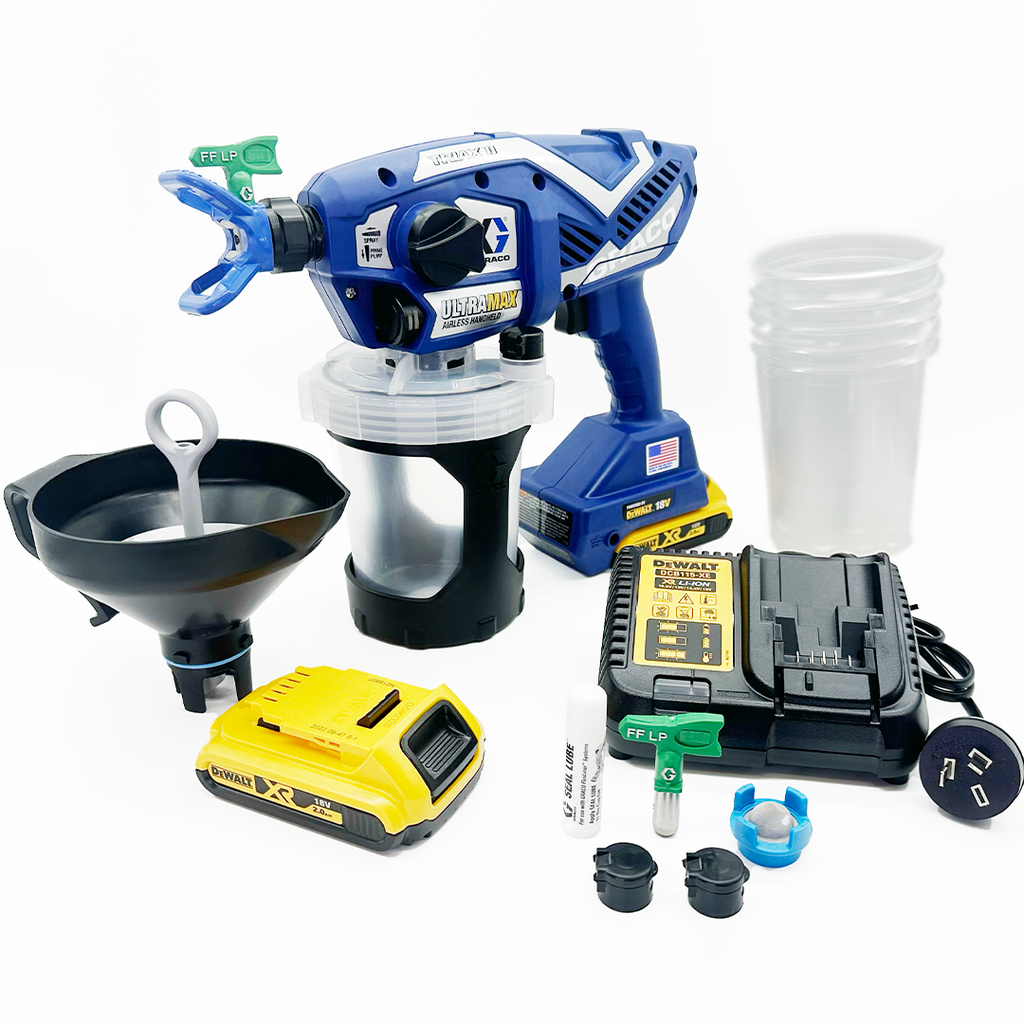

The sprayer comes ready to use with everything you need to get spraying

  • RAC X FF LP210 tip
  • RAC X FF LP 514 tip
  • 2 x DEWALT 18V-Max compact lithium ion batteries
  • DEWALT 18V-Max lithium ion battery charger
  • 4 x 1 Litre FlexLiner bags
  • Durable storage bag


Fire and explosion hazard warnings:

  • Connect the grounding cord when spraying flammable or static producing oil-based materials.
  • If there is static sparking or if you feel a shock, stop spraying immediately and connect the sprayer to a properly grounded electrical outlet with the ground wire provided.


Grounding Instructions:

  • Move the sprayer away from the spray area to a non-hazardous location. Plug the ground wire into the sprayer.
  • Unwind the ground wire from the spool and plug it into a properly grounded electrical outlet.
  • If the ground wire is not long enough to reach a grounded electrical outlet, a 3-wire grounded extension cord may be used to reach a grounded outlet.




ULTRA® AIRLESS HANDHELD AC ULTRA® AIRLESS HANDHELD DC ULTRAMAX AIRLESS HANDHELD D
Hot Solvent Compatible
Pressure Control Yes Yes Yes
Pressure Range 34 to 135 bar 34 to 135 bar 34 to 125 bar
Tip Type Supported RAC X FF LP RAC X FF LP RAC X FF LP
Batteries Included 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion
Filter Mesh Included 60 & 100 Mesh 60 & 100 Mesh 60 & 100 Mesh
Fully Repairable Yes Yes Yes
ProConnect System Yes Yes Yes
Storage Bag Included Yes Yes Yes


Compare Table

Click here to open table
ULTRA® AIRLESS HANDHELD AC ULTRA® AIRLESS HANDHELD DC ULTRAMAX® AIRLESS HANDHELD DC ULTRA® QUICKSHOT CORDLESS
Warranty 1 year 1 year 1 year 1 year
Part Numbers: 17M362 17N221 17N225 20B479
Max. Tip Size 0.016" 0.016" 0.016" 0.016"
Motor AC DC DC Brushless DC Brushless
Max. pressure - bar (PSI) 138 (2000) 138 (2000) 138 (2000) 138 (2000)
Weight - kg (lbs) <2.1kg 2.4kg 2.4kg 2.9kg
Material and Solvent compatibility Waterbased Waterbased Water-Solvent Water-Solvent
Repairable
SmartControlTM
Speed Selector ProControlTM II ProControlTM II ProControlTM II On Demand Pressure and Flow control
Cup system Throw-away Throw-away Throw-away Reusable
Tips 514 514 210 + 514 210 + 514
Guard RAC XTM - RAC XTM - RAC XTM - 17P573 RAC XTM - 17P573
Inlet filter 60 60 60 + 100 60 + 100
Power supply 3m power cable 2 x 18V DEWALT® battery 2 x 18V DEWALT® battery 2 x 18V DEWALT® battery
Battery charger
Cup + lid 1 L (1 cup, 1 lid) 1 L (1 cup, 1 lid) 1 L (1 cup, 1 lid) 1 L (1 cup, 1 lid)
Cup liners 4 4 4
Storage bag/case Bag Bag Bag Bag
Hot Solvent Compatible
Pressure Control Yes Yes Yes Yes
Pressure Range 34 to 135 bar 34 to 135 bar 34 to 135 bar 34 to 135 bar
Tip Type Supported RAC X FF LP RAC X FF LP RAC X FF LP RAC X FF LP
Batteries Included 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion 2 - DEWALT 20V Max Compact 2.0 ah XR Lithium Ion
Filter Mesh Included 60 & 100 Mesh 60 & 100 Mesh 60 & 100 Mesh 60 & 100 Mesh
Fully Repairable Yes Yes Yes Yes
ProConnect System Yes Yes Yes Yes
Storage Bag Included Yes Yes Yes Yes

Videos

Specifications

Max Tip Size: 0.41 mm (0.016 inches)

Max Pressure: 13.8 MPa (2000 PSI)

Weight: 2.4 kg

Dimensions: 44.45 cm x 33.02 cm x 18.42 cm (Length x Width x Height)

Compatible Paints: Water-based, oil-based, and solvent-based materials

Battery Type: 18V DeWalt lithium-ion

Features

Cordless Operation: The Graco 17N225 is powered by 18V DeWalt lithium-ion batteries, offering the freedom of cordless operation, ideal for small to medium-sized jobs.

Perfect Airless Finish: Designed for both water-based and oil-based paints, it provides a flawless finish, making it suitable for detailed projects where quality is paramount.

SmartControl Technology: Ensures consistent spray pressure, giving you a smooth finish without pressure fluctuations.

ProConnect Pump Replacement System: Allows for quick and easy pump replacements on the job, minimizing downtime.

RAC X FFLP SwitchTip: The sprayer includes the Fine Finish Low Pressure (FFLP) tips, which reduce overspray and provide better control, particularly for fine finishes.

What's Included

Graco UltraMax Handheld Unit: The core handheld sprayer unit.

2 x 18V DeWalt Lithium-Ion Batteries: Ensures you have a spare for uninterrupted work.

Battery Charger: Compatible with DeWalt batteries for quick recharging.

1 x FFLP514 Spray Tip and 1 x FFLP210 Spray Tip: For different spray patterns and applications.

Inlet Filters (60 mesh & 100 mesh): To filter out impurities and ensure smooth paint flow.

1-Litre Cup Assembly and 1-Litre Cup Liners: Includes solvent-resistant cup assembly and liners for easy paint handling and cleanup.

RAC X Guard: To protect the spray tip from damage.

Pump Armor Storage Fluid: Helps maintain the pump during storage.

Reviews

FAQ

Can the Graco Ultra MAX be used for water and oil based paints?
Yes, the Ultra MAX is perfect for use with both water and oil based paints
How many batteries does the Graco Ultra MAX come with?
The Ultra MAX comes with two DeWalt batteries.
Does it come with included sprayer tips?
Yes, the sprayer function is integrated into the one handheld unit and comes with two suitable sprayer tips.
How long do the batteries last?
At full-charge and being used at full-capacity, each battery will last between 20 and 30 minutes, giving you enough spraying time to complete most small jobs
Can I use the Graco Ultra MAX to spray 2-pack paints?
No, these handheld sprayer guns are not suitable for spraying 2-pack paints.

Dimensions

Width
Width
Height
Height
Length
Length
33.02cm x 18.42cm x 44.45cm

Weight

Courier

Easy To Carry

Total Weight: 6.10kg
